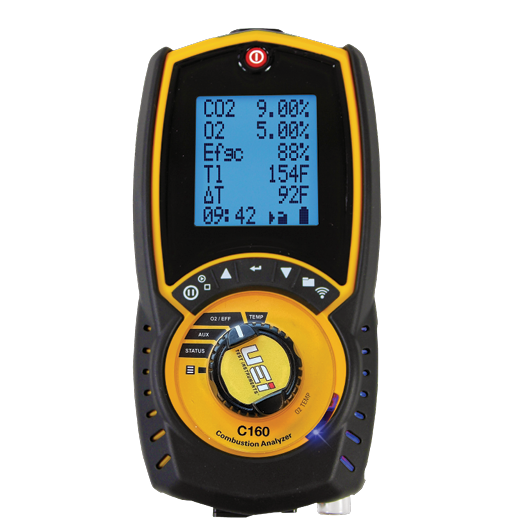

UEi C160 Residential Combustion Meter (0˚ ~ 600˚C, 0 ~ 20.9% O2, 0 ~ 30% CO2)

Temperature Measurement

Range/ Resolution / Accuracy

Flue Temperature : 32˚ to 1112˚F (0˚ to 600˚C) / 0.2˚F (0.1˚C) / ±(0.3% rdg +3.6˚F (2˚C))

Flue Gas Measurement

Oxygen: 0 to 20.9% / 0.10% / ±0.3% Volume

Calculations

Range / Resolution / Accuracy

Carbon Dioxide: 0 to 30% / 1.00% / ±0.3% rdg

Efficiency: 0 to 99.9% / 0.10% / ±1.0% rdg

Excess Air: 0 to 250% / 0.10% / ±0.2% rdg

Efficiency High (C): 0 - 119.9% / 0.1% / ±1% of rdg

Operating Temperature: 32˚ to 113˚F (0˚ to 45˚C)

Storage Temperature: 0˚ to 113˚F (-18˚ to 45˚C)

Operating Humidity: 15% to 90% R.H.

Back light: Yes

Dimensions: 8.54 x 4.18 x 1.86 inch

Item Weight: 1.51 lb

Calibration: Recommended Annually

Certification: CE Conformity, RoHS, REACH Compliant, AHRI 1260 standard

Battery Type: NiMH (AA) 3

Accuracy: ± (% of reading + # of least significant digits)
