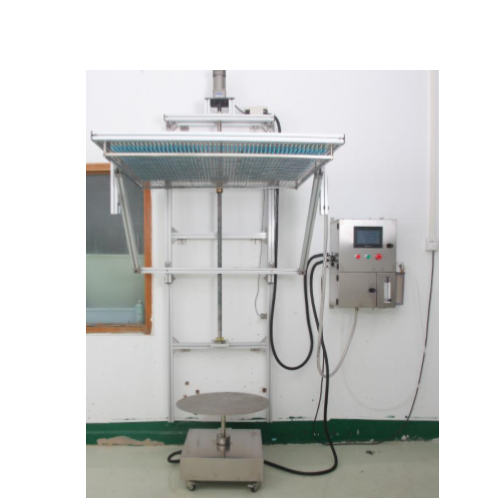

Uby Tech IPX1-2 Vertical Drop Rain Test (Wall-mounted)

Used to test the IPX1, IPX2 waterproof level of the product

Specifications

External size: About 1230*1340*2420mm

Inner size: 1000*1000mm

Drip board size: 1 r/min(IPX1), Can be set

Turntable diameter: ￠0.4mm

Turntable height: 20*20mm

Drip aperture: ￠600mm

Distance between drip holes: 600 mm

Rainfall: IPX1=1mm/min (+0.5mm/min); IPX2=3mm/min (+0.5mm/min)

Flow adjustment method: Manual adjustment

Drop rain board lifting method: 800—1800mm Adjustable

Turntable load-bearing: Not liftable (fixed)

Turntable tilt: 50kg

Turntable speed: 0° or 15° (horizontal direction)

Testing time: 0-999 min

Safety protection device: Leakage protection, water shortage protection, short circuit protection

Power supply: 220V, 50Hz

Power: 1kW
