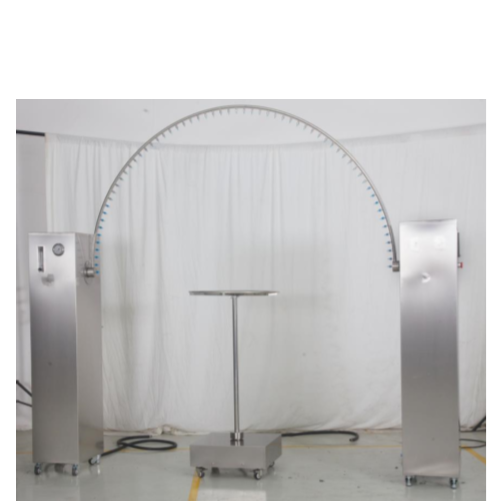

Uby Tech IPX3-4 Swing Tube Rain Test (Open Type)

Used to test the IPX3 and IPX4 waterproof level of the product

Specifications

Size (in working): L2850*D2020*H2350mm

Pendulum tube size: R1000mm

Sample turntable diameter:￠800mm

Flow: IPX3=2.9L/min±5%; IPX4=4.3L/min±5%

Turntable height range: 1300-1700mm

Spray hole size: ￠0.4mm

Pendulum tube inner diameter: 15mm

Maximum load-bearing capacity of turntable: 50kg

Turntable rotation speed: 1-5r/min(Precisely adjustable)

Turntable rotation method: Forward rotation/forward&reverse rotation alternately

Swing tube angle: 120° (IPX3), 350° (IPX4)

Swing speed of pendulum tube: 240° back and forth 4S, 720°back and forth 12S (Precise control)

Power supply: 220V, 50Hz

Test sample power: 220V, 50Hz

Power: 1.0KW

Safety protection function: Leakage protection, water shortage protection, short circuit protection
