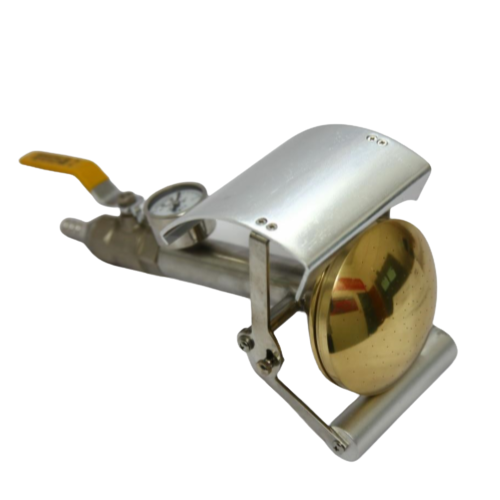

Uby Tech UP-6198-FS34A Rain Shower Test Device (Test IPX3, IPX4)

Used to test the IPX3 and IPX4 waterproof level of the product

Specifications

External size: About L380*W130*H150mm

Flow display: None

Brass nozzle size: Ø 102mm

Number of spray holes: 121个

Water jet aperture size: Ø 0.5mm

Hole position/ Outer diameter of water inlet

- Inside 2 circles 12 holes/circle, spacing 30°

- Inside 4 circles 24 holes/circle, spacing 15°

Outer diameter of stainless steel water pipe: Ø 18mm

Water flow: Ø 28mm

Flow adjustment method: 10L/min±5%

Water pressure range: Manual adjustment

External dimensions: 50―150Kpa
