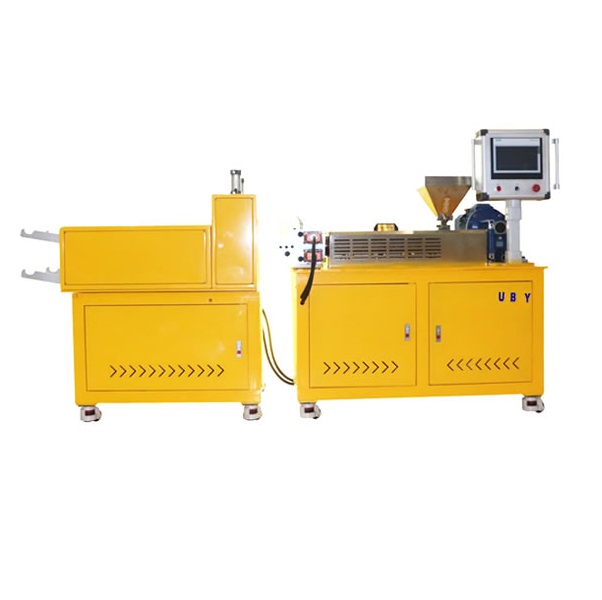

Uby Tech UP-6178F Lab Tape Casting Machine (0-95rpm)

1. Screw: ￠ 20mm PE, EVA, special screw

2. Screw speed: 0-95rpm frequency conversion speed regulation

3. Length diameter ratio: 1:28

4. 55 ~ 60, roughness Ra ≤ 0.4 μ m, nitriding layer depth ≥ 0.6mm

5. 55 ~ 60, roughness Ra ≤ 0.4 μ m, nitriding layer depth ≥ 0.6mm

6. Heating area: mica heater in barrel area 4, heater in head area 1, with copper radiator in each area, covered with stainless steel safety hood

7. Temperature accuracy: ± 1 ℃

8. Cooling device: 4 sets of multi wing fans, super static forced air cooling

9. Drive motor: 3.7KW gear reducer motor

10. Power supply: 3 ∮, AC380V, 50Hz three-phase five wire

11. Electric control system: PLC programmable color touch screen, human-machine interface operation system, dynamic display and monitoring of extrusion process
