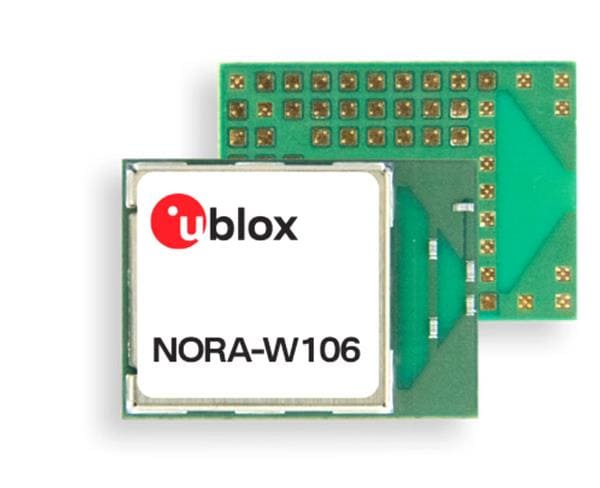

u-blox NORA-W106-00B Multiprotocol Modules ESP32-S3, 802.11bgn+BLE, PCB antenna, open CPU

Core: MCU

Features: Powerful wireless MCU with enhanced security

Data Rate: 150 Mbps

Frequency: 2.4 GHz

Dimensions: 10.4 mm x 14.3 mm x 1.8 mm

Modulation: GFSK

Sensitivity: - 96 dBm

Output Power: 18 dBm

Interface Type: CAN, GPIO, I2C, I2S, PWM, SPI, UART, USB

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Number of Channels: 40 Channels

Description/Function: Stand-alone multiradio modules

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 3 V

Antenna Connector Type: PCB

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth 5.0
