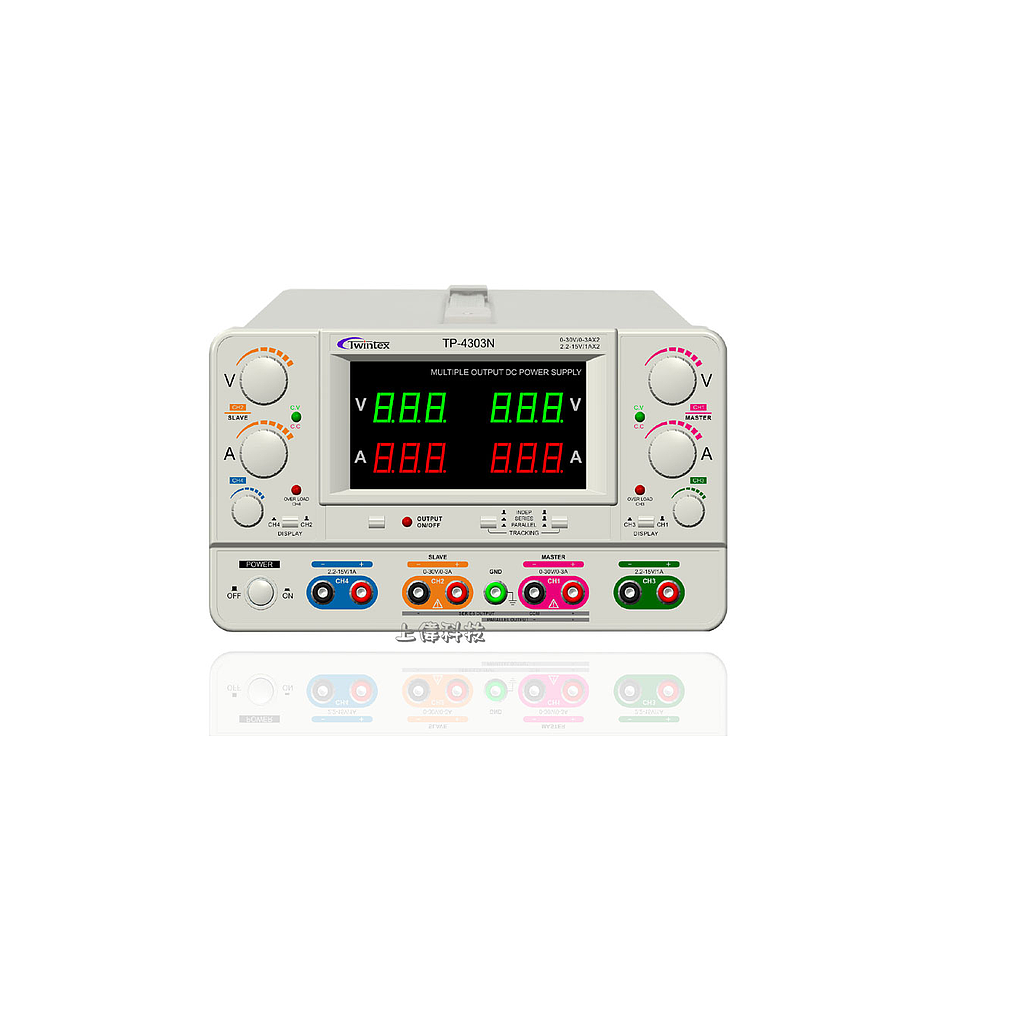

Twintex TP-4303N Linear DC Power Supply (30V, 3A, 195W)

Output: 0~30V/0~3A x2; 2.2~15V/1A x2

Output Power: 195W

Constant Voltage Operation:

Line Regulation: ≤0.01%+3mV

Load Regulation: ≤0.01%+3mV

Ripple and Noise: ≤1mVrms

Constant Current Operation:

Line Regulation: ≤0.2%+3mA

Load Regulation: ≤0.2%+3mA

Ripple and Noise: ≤3mArms

Tracking Operation:

Parallel:

Line Regulation: ≤0.01%+3mV

Load Regulation: ≤0.02%+5mV

Series:

Line Regulation: ≤0.01%+5mV

Load Regulation: ≤300mV

Auxiliary Output (CH3/CH4):

Output Voltage: 2.2V~15V

Output Current: Fixed 1A

Load Regulation: ≤25mV @ 110V/220Vac rated output

Ripple and Noise (5Hz~1MHz): ≤2.0 mVrms

Protection:

Overload Protection and Reverse Polarity Protection

Display:

Voltmeter: 3-digit LED display

Ammeter: 3-digit LED display

Resolution: 100mV/10mA

Accuracy:

Actual Voltage and Current Output: ±(1% of reading + 2 digits)

Preset Voltage and Current: ±(1% of reading + 8 digits)

General Specifications:

Protection: Overload Protection and Reverse Polarity Protection

Power Supply: AC110V, AC220V or AC110V/220V ±10%, 50/60Hz

Operating Environment: 0℃~40℃, ≤80%RH

Storage Environment: -10℃~70℃, ≤70%RH

Power Supply: Selectable AC110V/220V ±10%, 50/60Hz

Accessories: Power Cord x1, User Manual x1

Weight: 8.5kg
