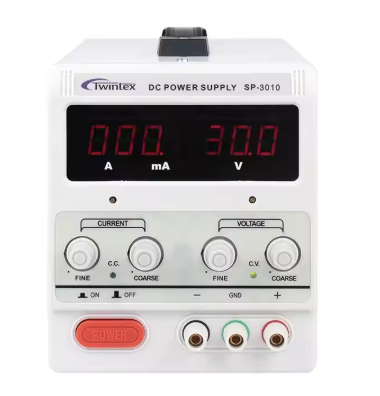

Twintex SP-3010 Power Supply (0-30V, 0-10A)

Constant voltage operation

Line regulation: ≤0.05%+1mV

Load regulation: ≤0.1%+5mV

Ripple & Noise: ≤10mVrms

Constant current operation

Line regulation: ≤0.05%+10mA

Load regulation: ≤0.1%+10mA

Ripple & Noise: ≤20mArms

Display

Voltmeter: 3 digits LED display

Ammeter: 3 digits LED display

Resolution: 100mV/10mA

Accuracy: ±(1% reading+1 digit)

General

Protection

Over current protection, fixed 105% of rated current.

Over voltage protection, fixed 105% of rated voltage.

Over temperature protection: when internal temperature reaches 65℃±5℃, OTP is activated and the output will be shut down.

Operating environment: 0℃~40℃, ≤80%RH

Storage environment: -10℃~70℃, ≤70%RH

Power source: AC115V/230V±10% selectable, 50/60Hz

Accessories: Power cord x1, Operation manual x1

Dimension

S2 chassis: 125Wx160Hx260D mm

S3 chassis: 150Wx140Hx280D mm

Weight: Approx.2kg
