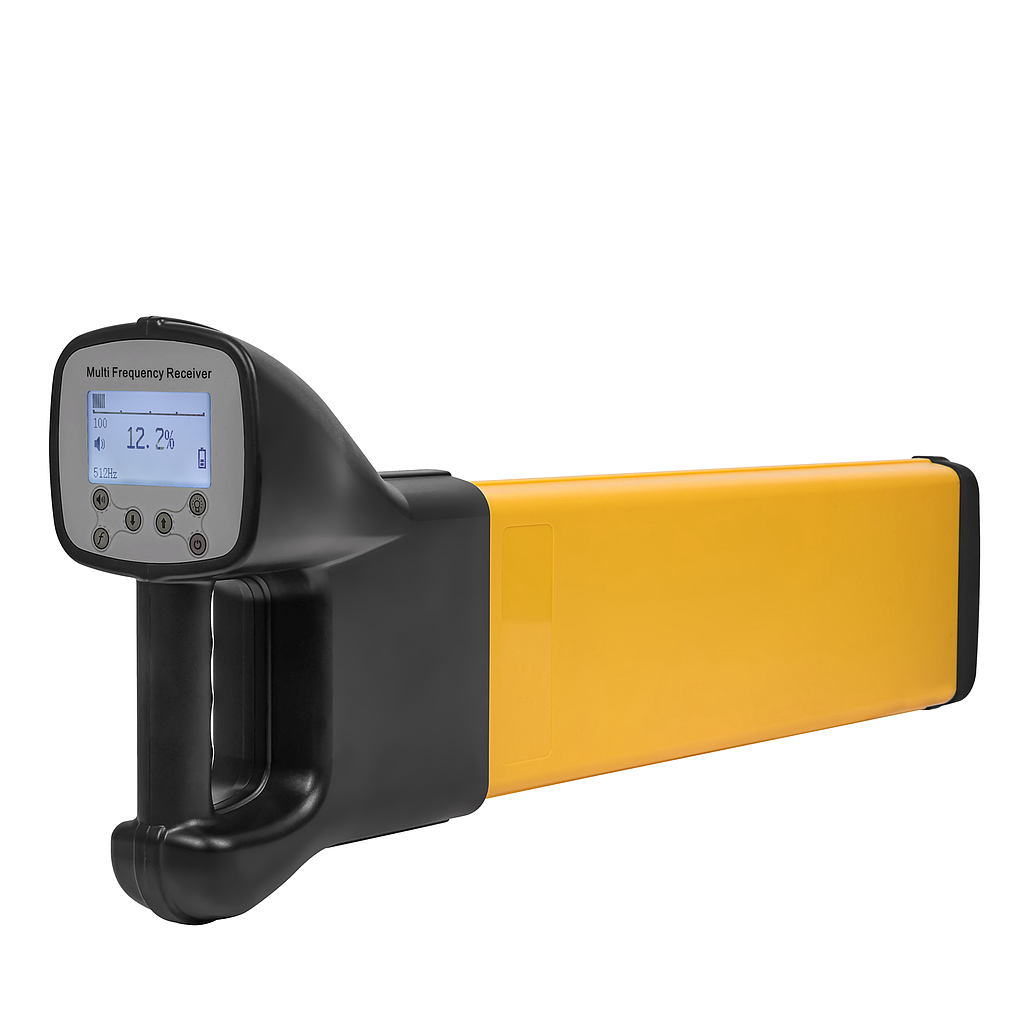

TvbTech TPL200 Sonde and Power Line Locator (512Hz/640Hz/33kHz)

Locate Frequencies:512Hz/640Hz/33kHz

Power Line Locate:50/60Hz Power Line

Radio Frequencies:250Hz~40kHz

Receive Distance:10 meters (open area)

Percentage Signal Level: on screen

Signal Level Output:Speaker or headphone

Sensitivity Setting:0~100

Speaker Level:Adjustable

LCD Back Light:Adjustable

Size: 690mm×240mm×110mm

Weight: 2KG

Ingress Protection: IP65

Operating Temperature: -10~50℃/+14~+122℉

Storage Temperature: -20~60℃/+4~+140℉

Power supply:Lithium Battery 7.4V 2200mAh (Build-in)

Working time: 10 hours

Current Consume:220mA(max)

Charge time:5 hours

Charge Power Supply:5V DC (USB-Type C Cable)
