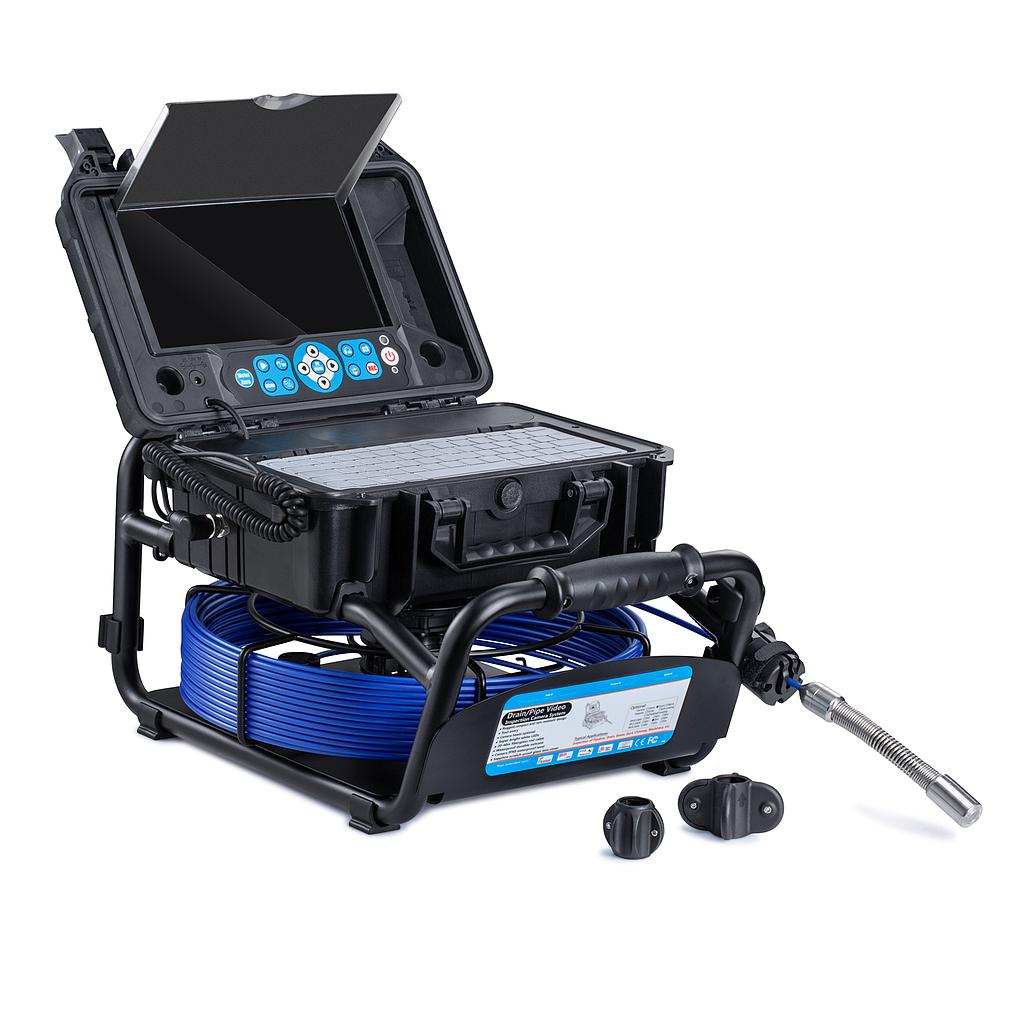

TvbTech 3499F-7 Sewer Drain Pipe Inspection Camera System (20m cable, AHD 1920*1080, Φ23mm, 7")

Camera Head

Camera Size: Φ23mm×51mm

Camera Total Length: 155mm

Sensor: 1/3" CMOS

Resolution: AHD 1920*1080

View Angle: 130°

F℃us Distance: 15cm (approx)

Depth-of-Field: 20cm(approx)

Front Lens: Sapphire glass

Water-Proof: 20m Under Water(Camera fix on Cable)

Shell Material: #304 stainless steel

Lighting: Built-in 15×LED(White)

Operating Temperature: -10~50℃/+14~+122℉

Storage Temperature: -20~60℃/+4~+140℉

Cable Wheel

20M fiberglass rod cable

Dia. of push cable: 5.2mm

Material of cable: Fiberglass covered by PP

LCD Monitor

Screen: 7-inch 16:9 Super bright HD color LCD screen

Resolution: 1024x600 pixels

Mirror and Flip: support image mirror, and flip

Video Resolution: AHD 1080P / CVBS D1

Video Encoding: H.264

Audio Recording: l℃al sound record

Output: TV and Audio output

On-screen date and time

On-screen meter/ft. distance display(optional)

External memory: support SD memory card up to 64GB

Data output: USB 2.0 to PC

Language: Simplified Chinese, English, Traditional Chinese, Japanese, Korean, Russian, German, French, Italian, Spanish, Portuguese, Thai, Finnish, Swedish

Battery Supply

Power Supply: DC 12V input

Battery Capacity: 7.2V 6400mAh Li-on Battery

Power Output: 6-12V DC, USB 5V

Work/Charge time: 6/8 hours
