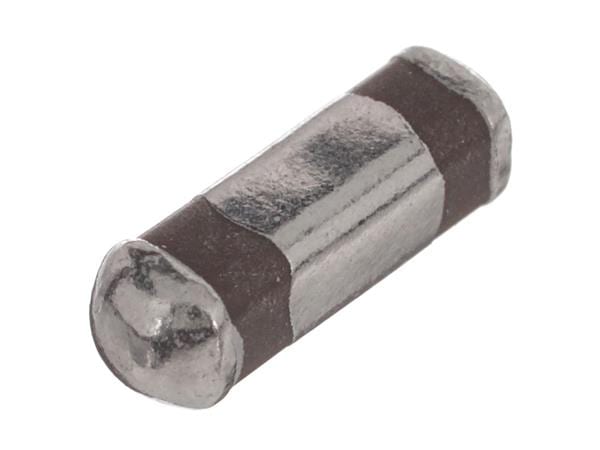

Tusonix 4700-003MLF EMI/RFI Surface Mount Pi and C Filters 2000pF 100Volts@125C
ManufacturerTusonix(View more products from this manufacturer)
Model4700-003MLF
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 2.29 mm
Height: 2.29 mm
Length: 8 mm
Diameter: 0.09 in
Tolerance: - 20 %, + 80 %
Capacitance: 2000 pF
Unit Weight: 170 mg
REACH - SVHC: Details
Current Rating: 10 A
Ground Terminal: 3.2 mm
Capacitance - nF: 2 nF
Capacitance - uF: 0.002 uF
Voltage Rating DC: 100 VDC
Insulation Resistance: 10 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
