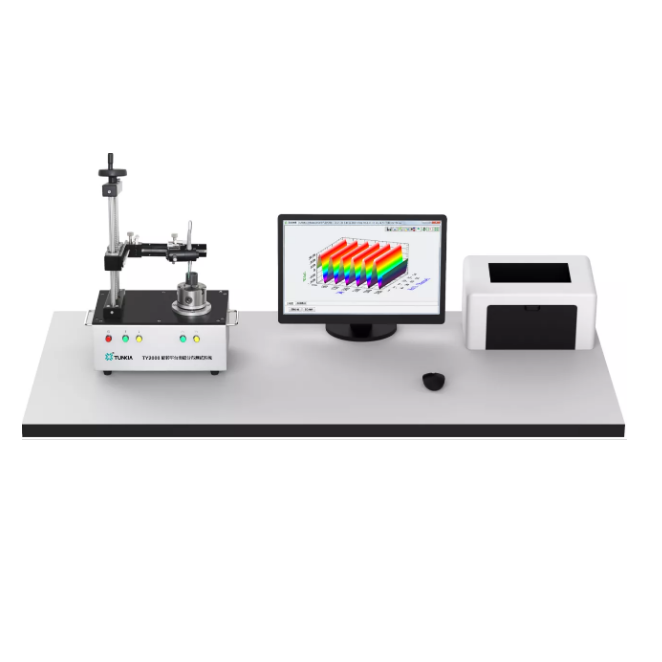

Tunkia TY2000 Surface Magnetic Field Automatic Testing System (Manual, 0 ～2000 mT, 50000/360°)

- Tesla Meter:

Measuring Range: 0 ～2000 mT

Minimum Resolution: 10 μT

Uncertainty Of Measurement (k= 2 ): 0.5%

- Rotary Motor (W axis):

Subdivision: 50000 / 360°

Concentricity 0.05mm

TY2000-Z (Z axis) (optional): Adjustable Stroke: 200mm/ Adjustable Fineness: 1 mm

- Specimens Specifications:

Chuck Clamping Range: Internal diameter: Φ2 mm~70mm; External diameter: Φ24 mm~64mm

Diameter: ≤Φ 350 mm

Quality: ≤3 kg

- General Specifications:

Power Supply: AC ( 220 ± 22 ) V，( 50 ± 2 ) Hz

Temperature Performance:

Working Temperature：0°C～40°C；

Storage Temperature：-20°C～70°C

Humidity Performance:

Working Humidity：40%～80% R•H，No condensation

Store Humidity：< 95% R•H，No condensation

Size: 500 mm (W) × 340 mm (D) × 620 mm (H)

 1. Summary

TY2000 is a special equipment for measuring the magnetic field distribution of permanent magnetmaterials and motor rotor surface. It can measure surface magnetic parameters and drawsurfacemagnetic curve of ring specimens, including X-Y rectangular magnetic field distributiondiagram,polar coordinate magnetic field distribution diagram, three-dimensional magnetic fielddistributiondiagram, etc

2. Applications

- Measuring Ring Specimens : It can test cylindrical permanent magnets, multi-polemagneticrings, magnetic tiles, small motor rotors, etc.

- Surface Magnetic Parameters: pole number, polarity, peak value of magnetic pole, angle, area,width, half-width height, magnetization angle; The results of each table magnetic parameterinclude maximum value, minimum value, average value, standard deviation , etc.

- Surface Magnetic Curve: X-Y rectangular magnetic field distribution diagram, polar coordinatemagnetic field distribution diagram, three-dimensional magnetic field distribution diagram, etc.

Datasheet
