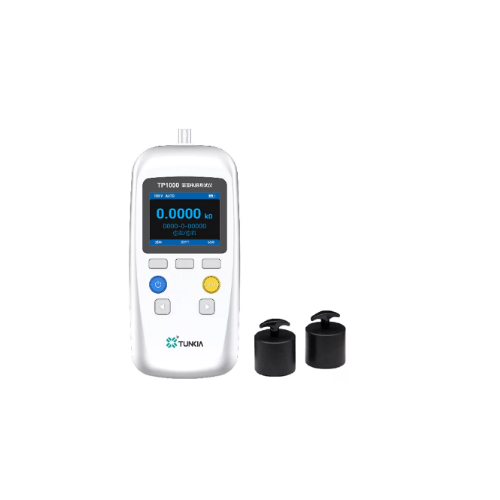

Tunkia TP1000 Surface Resistance Tester (1.0000 k< R ≤1.0000 T)

- Resistance Measurement:

Resistance Range (Ω): 1.0000 k< R ≤1.0000 T

Resolution: 0.1 Ω~ 100 MΩ

Test Voltage: 10 V / 100 V

Optimal Measurement Uncertainty: 5% *RD

Displays Digits: 5-digit decimal display

Test the Electrodes:

Weight: 2.5 kg ± 0.3 kg

Contact Surface Diameter: 50mm~64mm

Total Resistance of Conductive Rubber: < 1000 Ω

- Temperature and Humidity Measurement:

Relative humidity: 10% ~ 80% R•H, measurement uncertainty: 5% * RD

Temperature measurement: 0°C ~ 50°C, measurement uncertainty: 5% *RD

- General Specifications:

Power Supply: Rechargeable battery powered

Warm-up Time: 10 minutes

Maximum Power Consumption: 100 VA

Temperature Performance:

Working temperature: 0°C~45°C

Storage temperature: -20°C ~ 70°C

Humidity Performance:

Operating humidity: < 80% @ 30°C, < 70% @ 40°C, < 40% @ 50°C

Storage humidity: (20% ~ 80%) R•H, no condensation

Altitude: < 3000 m

Instrument Quality: Approx 0.5 kg

Communication Interface: Type-C
