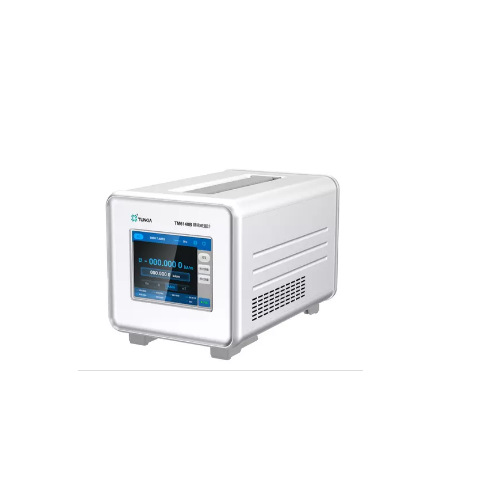

Tunkia TM6140B Precision Magnetometer (0 ~ 3000 mT)

- Range: 3 mT

Resolution: 1 nT

Accuracy ±(ppm of reading + μT):

DC: 0.1% + 100

AC (Effective Value): 1% + 100

Zero Drift ± μT / h: 15

Temperature Coefficient ±ppm /k: 50

- Range: 30 mT

Resolution: 10 nT

Accuracy ±(ppm of reading + μT):

DC: 0.05% + 100

AC (Effective Value): 1% + 100

Zero Drift ± μT / h: 20

Temperature Coefficient ±ppm /k: 50

- Range: 300 mT

Resolution: 100 nT

Accuracy ±(ppm of reading + μT):

DC: 0.05% + 100

AC (Effective Value): 1% + 200

Zero Drift ± μT / h: 50

Temperature Coefficient ±ppm /k: 50

- Range: 3000 mT

Resolution: 1 μT

Accuracy ±(ppm of reading + μT):

DC: 0.05% + 150

AC (Effective Value): 1% + 300

Zero Drift ± μT / h: 75

Temperature Coefficient ±ppm /k: 50

- General Specifications:

Power Supply: AC ( 220 ± 22 ) V , ( 50 ± 2 ) Hz

Temperature Performance:

Operating Temperature: (23 ± 5) ℃

StorageTemperature: -20°C ~ 70°C

Humidity Performance:

Operating Humidity: 40% ~ 80 % R•H, non-condensing

Storage Humidity: < 80% R•H, non-condensing

Weight: About 5 kg

Interface: Hall Probe Input Interface, RS232 interface

Dimensions: 190 mm ( W ) ×300 mm (D) × 200 mm (H)
