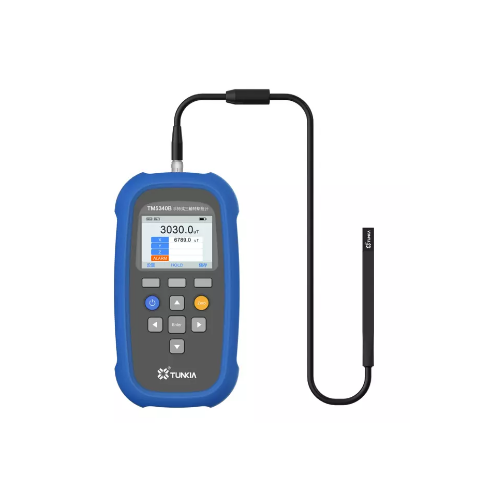

Tunkia TM5340 Hand-held Triaxial Tesla-Meter (2 mT～3000 mT)

Summary

The TM5340B is a portable, multi-function meter that measures magnetic field, equipped with high sensitivity, low drift triaxial Hall sensor. It is applied for measuring the magnetic density value of DC or AC triaxial magetic field.

Specification

-XYZ Range: 30 mT; R Range: 52 mT; Resolution: 1 μT

-XYZ Range: 300 mT; R Range: 520 mT; Resolution: 10 μT

-XYZ Range: 3000 mT; R Range: 5200 mT; Resolution: 0.1 mT (1)

Measuring Range: 2 mT～3000 mT

Accuracy: DC: ±(0.5% + 200 μT), AC: ±(3% + 500 μT)

Frequency Range: DC,40 Hz～500 Hz

Temperature Coefficient: ± 0.06% / K

Zero Drift: ± 0.1 mT / h

Display Digits: 5

Remark: (1) Calibration only covers 2.5T

General Specifications:

Power Supply: 4000 mAh lithium battery, USB charging

Temperature Performance:

Operating temperature:0°C～45°C

Storage temperature:-20°C～70°C

Humidity Performance:

Working humidity:20%～80% R•H, non-condensing

Storage humidity:< 85% R•H, non-condensing

Weight: About 500 g

Interface: Hall probe input interface, USB interface

Dimensions: 90 mm(W) × 40 mm(D) × 165 mm(H)
