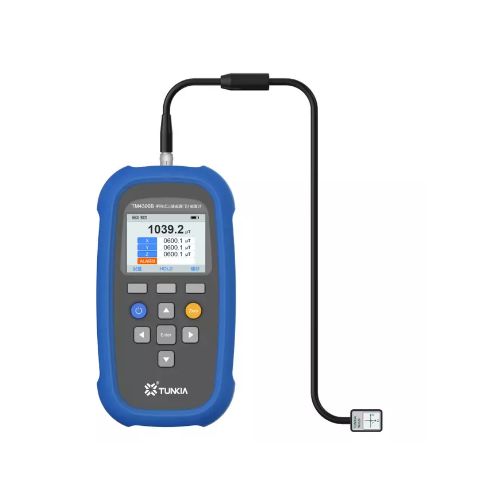

Tunkia TM4300 Hand-held Triaxial Fluxgate Magnetometer (2000μT probe, Class 2)

Probe ( μT ): 2000

Resolution (nT): 100

Accuracy:

Class 2: ±2%; Class 1: ±1%

Noise @1Hz: < 20 nTrms

Temperature Coefficient ( %/°C ): ± 0.1

Note : The corresponding probe is selected according to the measurement of range

XYZ Range:0～± 2000 μT

R Range:0～± 3464 μT

Display Digits: 5-digits display.

Frequency Range: DC～400 Hz.

Linearity: ± 0.5%.

-General Specifications:

Power Supply: 4000 mAh lithium battery or USB charging

Temperature Performance:

Operating temperature: 0°C～45°C

Storage temperature: -20°C～70°C

Humidity Performance:

Working humidity: 20%～80% R•H, Non-condensing

Storage humidity: < 85% R•H, Non-condensing

Weight: About 500 g

Interface: Fluxgate probe input interface, USB interface

Dimensions: 90 mm (W) × 40 mm(D) × 165 mm(H)

Probe Dimensions: 20 mm (L) × 14 mm (W) × 12 mm (H)
