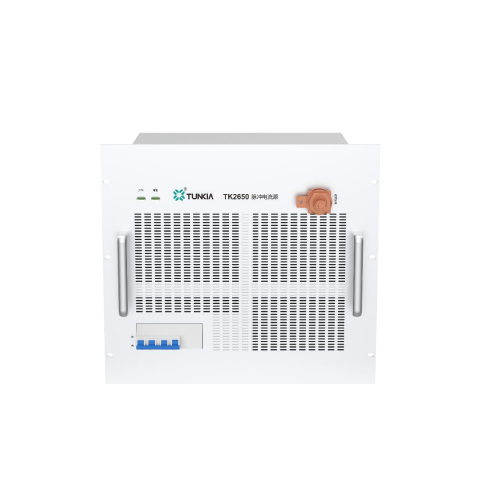

Tunkia TK2650 Pulse Current Source (10 A ~ 500 A)

Pulse Type: Unipolar pulses

Output Range: 10 A ~ 500 A

Adjust the Fineness: 0.01%

Amplitude Accuracy: ± 0.5%* range

Pulse Width: 1 ms ~ 100 ms

Pulse Width Adjustment Step: 0.1 ms

Pulse Width Accuracy: ± 0.1%

Current Rise/Fall Time: ≤10 μs

Amplitude of Current Overshoot: ≤20%

Maximum Load Voltage: 3.5 Vhp

-General Specifications:

Power Supply: Three-phase five-wire, AC (380±38) V, (50±2) Hz

Maximum Power Consumption: 6 kVA

Working Environment:

Temperature: 0°C ~ 40°C

Humidity: 20% R•H ~ 80%R•H, no condensing

Others: No electromagnetic field interference.

Storage Environment:

Temperature: -20°C ~ 70°C

Humidity: <95% R•H, no condensing

Communication Interface: RS232×1
