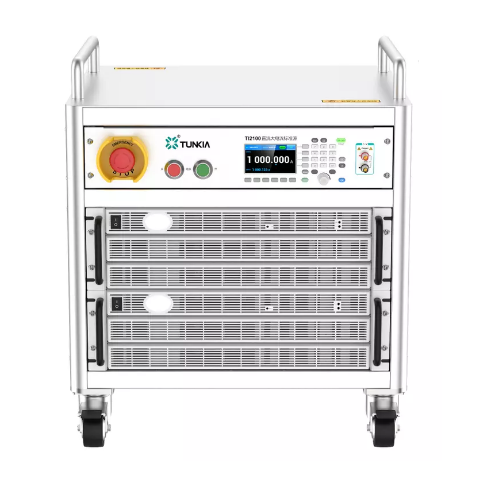

Tunkia TI2100 High-Stable DC High Current Standard Source (3 kA, unipolar output)

Device Rating: Class 0.01

Range/N*1.5k A Specification: N * 1.5 kA

Output Range:(1% ~ 100%)*RG

Current Commutation:

Supports external commutator (option)

Supports bipolar outputs (function option)

Maximum Load Voltage: 10 V

Short-term Stability: 0.003%*FS

Measurement Uncertainty (k=2) ppm*RD①+ppm*RG②: 60 + 40

Ripple Coefficient: ≤ 0. 1%

Settling Time: ≤1 s

Circuit Protection: Open circuit protection, overload protection, overtemperature protection

Note: (1) RD is the reading value, (2) RG is the range value

- General Specifications:

Power Supply: Three-phase five-wire, AC 38 0 V ± 38 V, 50 Hz ± 2 Hz

Quality (3 kA size): 84.5 kg

Working Environment: 0°C ~ 50°C, (20% ~ 85%) R•H, non-condensing

Storage Environment: -20°C ~ 70°C, <85% R•H, non-condensing

Communication Interface: LAN、RS232、USB
