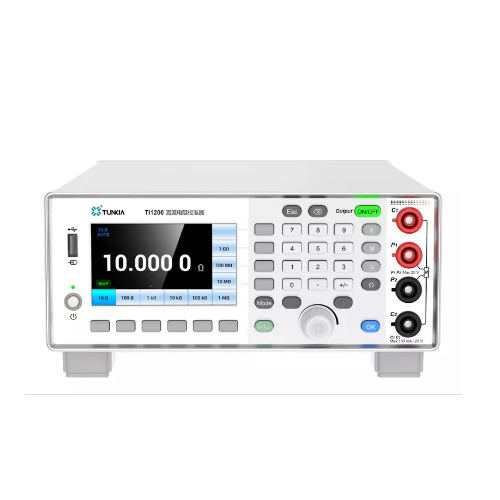

Tunkia TI1200 Precision DC Resistance Calibrator (0 Ω ~ 1100 MΩ)

Summary

TI1200 is a high-precision DC resistance source with wide range, it is applied for calibrating ohmmeter on-site, e.g, industrial production lines, etc.

Application

- Calibrate DC resistance meters

- Calibrate digital multimeters

- Calibrate DC bridges, microhmmeters.

Features

Resistance Output: 0 Ω ~ 1100 MΩ

Accuracy: 50 ppm

Shortcut output keys

Programmable calibration schemes

RS232, LAN and USB communication interfaces

General Specifications

Power Supply:AC (220±22) V, (50±2) Hz

Maximum Power Consumption:100 VA

Warm-up Time:Twice the time since last warmed up, to a maximum of 30 minutes.

Temperature Performance:0°C ~ 55°C, 30%R·H ~ 80%R·H, non-condensing

Humidity Performance:-30°C ~ 70°C, 10%R·H ~ 90%R·H, non-condensing

Communication Interface:USB×1、LAN×1、RS232×1

Dimensions:215 mm (width) x 252 mm (depth) x 88 mm (height), excluding feets.

Display:3.5-inch color LCD

Weight:About 5 kg

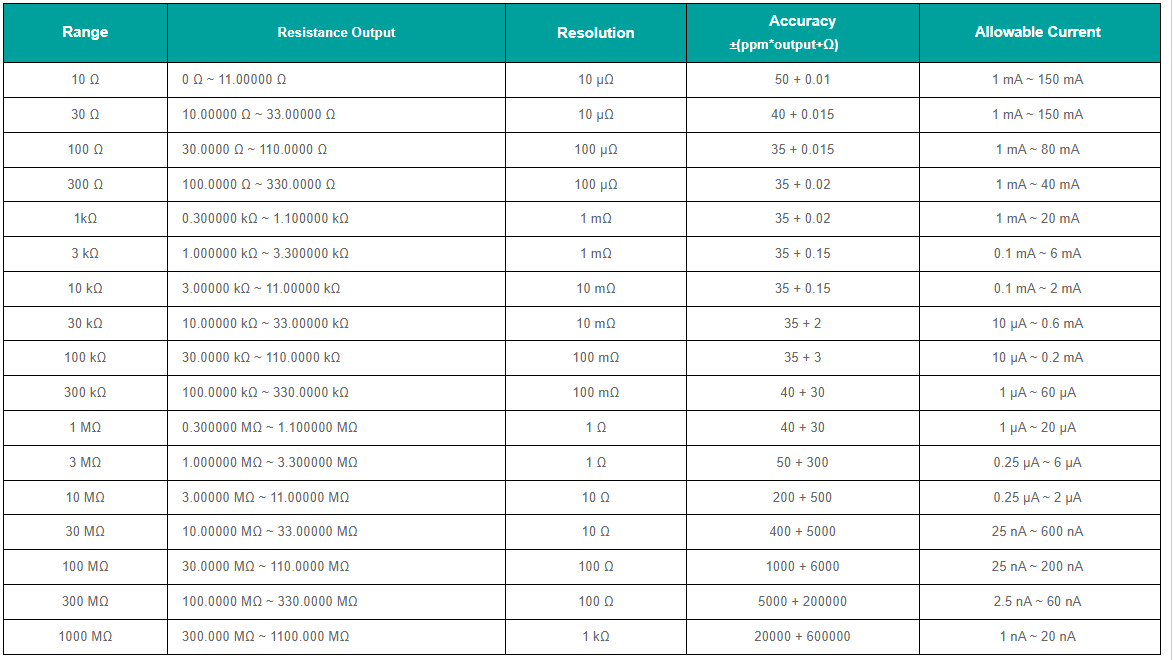

For detailed specifications, please refer to the Datasheet enclosed herewith

Datasheet
