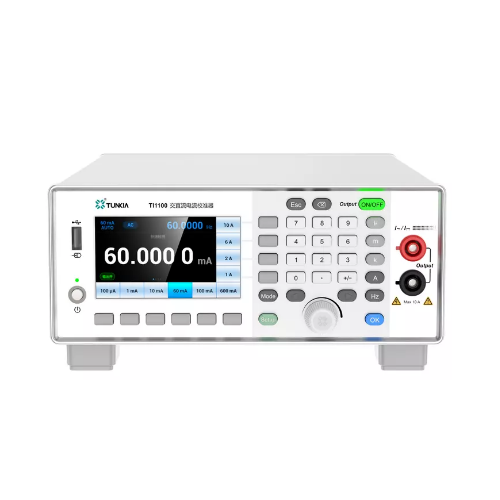

Tunkia TI1100 Precision AC/DC Current Calibrator (10 μA ~ 10.5 A)

Summary

TI1100 is an AC/DC current source with high stability and precision, it is applied for calibrating ammeters on-site, e.g, industrial production lines, etc

Features

AC\DC current output: 10 μA ~ 10.5 A

Standard version (TI1100-B) and advanced version (TI1100-C) are available

Typical specifications of the standard version (TI1100-B):

Frequency: DC, AC 10 Hz ~ 2 kHz.

Typical short-term stability: 0.01%/min

Optimum Accuracy: DC 0.02, AC 0.05.

Typical specifications of the advanced version (TI1100-C):

Frequency: DC, AC 10 Hz ~ 10 kHz

Typical short-term stability: 0.005%/min

Optimum Accuracy: DC 0.01, AC 0.02.

Shortcut output keys.

Programmable calibration schemes.

RS232, LAN and USB communication interfaces.

For detailed specifications, please refer to the Datasheet enclosed herewith

Datasheet
