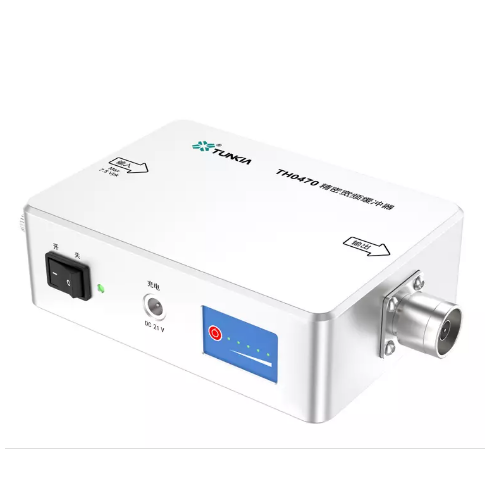

Tunkia TH0470 Precision Wide-Band Buffer (1 MHz)

AC/DC difference (ppm):

50 Hz: 3

400 Hz: 4

1 kHz: 4

10 kHz: 10

100 kHz: 60

1 MHz: 2500

Phase shift (μrad):

50 Hz: 3

400 Hz: 5

1 kHz: 5

10 kHz: 10

100 kHz: 90

1 MHz: 2500

Input voltage: 7 Vpk

Input impedance: 10 MΩ // 20 pF

-General Specifications:

Power supply: Battery powered, continuous working time after full charge > 7 hours

Temperature performance:

Operating temperature: 13°C ~ 33°C

Storage temperature: 5°C ~ 45°C

Humidity Performance:

Operating humidity: 50% R•H，non-condensing

Storage humidity:（15% ~ 80%）R•H，non-condensing

Weight: Approx. 1.5 kg

I/O connectors:

Input: 50 Ω-N female

Output: 50 Ω-N male

Dimensions: 215 mm (W) ×130 mm (D) ×62 mm (H)

Datasheet
