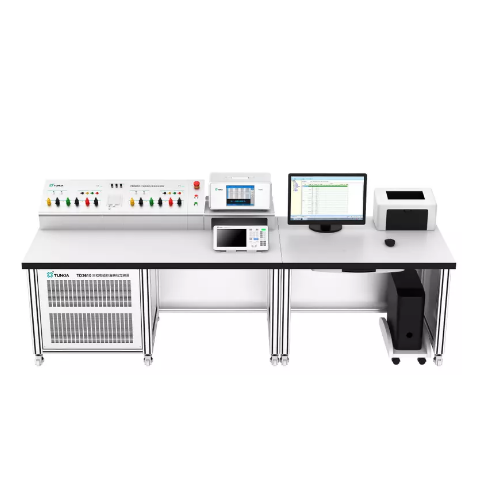

Tunkia TD3610 Three-phase Standard Energy Meters Verification Device (Class 0.01)

High accuracy: Accuracy class 0.01, output power stability is 0.01% / 2min

High reliability: Automatic range switching. It can guarantee the measurement accuracy even when the machine is switched on and off in the limit state (500 V, 100 A).

Reliable quality: Temperature coefficient ＜0.5 ppm/K.

Harmonic output / measurement: The 2nd ~ 63st @ 50 Hz / 60 Hz, Harmonic content and phase are programmable.

Two sets of test buttons: The device has a set of output and measurement buttons, which are independent of each other.

Electric energy measurement: Equipped with single phase, three phase three wire, three phase four wire, positive phase sequence, reverse sequence (contain negative direction) and other power metering functions.

Comprehensive analysis function: Waveform display, phase diagram display, Stability test, Change curve drawing, Statistical analysis of data, etc.

Mobile measurement and control console: Users can read or control output value through LCD touch screen.

For detailed specifications, please refer to the Datasheet enclosed herewith.
