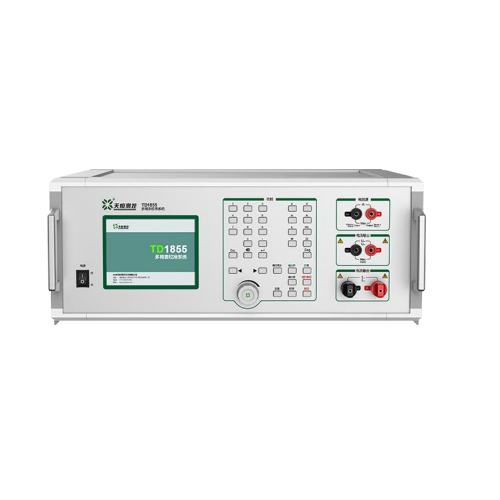

Tunkia TD1855 Calibrator for Multimeter (30A, Transducer calibration)

DC voltage output: 20 mV ~ 1100 V

DC current output: 2 μA ~ 22 A（33 A is optional）

AC voltage output: 20 mV ~ 1100 V

AC current output: 200 μA ~ 22 A（33 A is optional）

Sinusoidal wave frequency: 45 Hz ~ 1100 Hz

Simulated DC resistance: 10 Ω ~ 220 MΩ

2 MHz square wave frequency output

Phase output

AC/DC power output

Remote adjustment (optional)

Clamp meter calibration (optional)

Transducer calibration(optional)

Please see the Datasheet for detailed specifications

Datasheet
