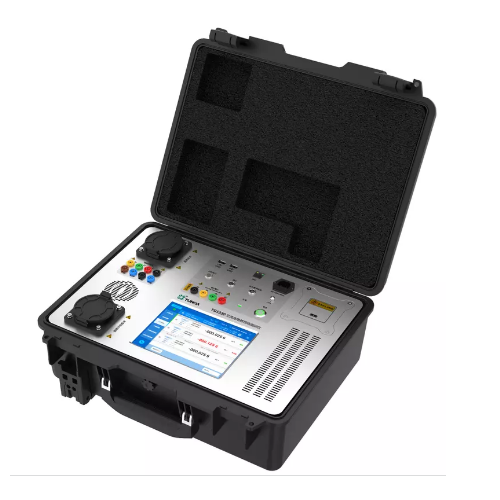

Tunkia TD1330 Portable Tester for EV AC Charging Station (Class 0.1)

- Three-phase ACV measurement:

Range: 240V

Resolution: 0.1 mV

Accuracy ( ± ppm of reading + ppm of range) [1]: 400 + 100

Temp. Coefficient, ± ppm*RD /°C @-25℃~55℃: 30

Measurement range: 30 V ~ 300 V

- Three-phase ACI measurement:

Range: 60A ~ 100 mA

Resolution: 0.1 μA ~ 10 μA

Accuracy ( ± ppm of reading + ppm of range): 400 + 100

Temp. Coefficient, ± ppm*RD /°C @-25℃~55℃: 50

Measurement range: 10 mA ~ 78 A:

- P/E Energy Measurement

Active power/electrical energy |cosΦ| ≥0.5: Accuracy: 0.1%*RD

- Temperature Clock:

DC power / electrical energy

Range: -30℃~60℃

Accuracy: 0.3℃

Clock function

Timing mode: GPS clock timing

Accuracy: 1s/d

-General Specifications:

Power supply mode: EV charger, built-in lithium battery, 220V commercial power

Power supply: AC ( 220 ± 22 ) V, ( 50 ± 2 ) Hz

Max. Power: 80 VA

Communication interface: USB, LAN, WIFI

Temperature performance: Operating temperature: -25°C~55°C; Storage temperature: -30°C~70°C

Humidity Performance: Operating humidity: < 80% @ 30°C, < 70% @ 40°C, < 40% @ 50°C; Storage humidity: <80% R•H, non-condensing。

Altitude: < 3000 m

Weight: About 13 kg

Dimensions: 390 mm（W）× 400 mm（D）× 260 mm（H）
