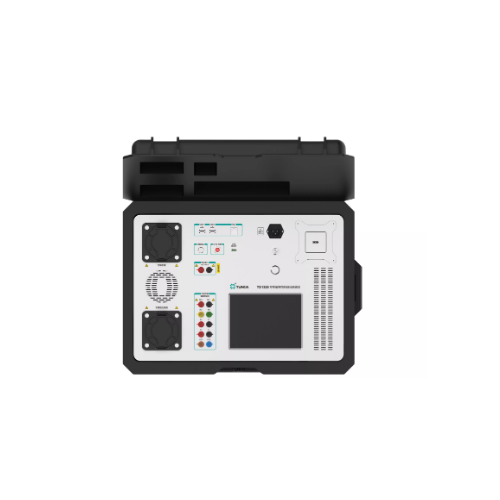

Tunkia TD1320 Portable Tester for EV DC Charging Station (Class 0.05)

- DCV Measurement:

Range: 300~1000V

Resolution: 0.1 mV~1 mV

Accuracy ± (ppm of reading + ppm of range) [1]: 200 + 25

Temp. Coefficient, ± ppm*RD /°C @-30°C~55°C: <20

Measurement range: 30V~1150 V

- DCI Measurement:

Range: 5A ~ 250A

Resolution: 1 μA ~ 0.1 mA

Accuracy ± (ppm of reading + ppm of range): 100 + 150/ 200 + 50

Temp. Coefficient, ± ppm*RD /°C @-30°C~55°C: 10~100

Measurement range: 0.5 A ~ 300 A

- P/E Energy Measurement:

Accuracy: ± 0.05%*RD

- Temperature/Clock:

Temperature Measurement:

Range: -30℃~60℃

Accuracy: 0.3℃

Clock function

Timing mode: GPS clock timing

Accuracy: 1s/d

- General Specifications:

Power Supply Mode: EV charger, built-in lithium battery, 220V commercial power

Power Supply: AC ( 220 ± 22 ) V, ( 50± 2 ) Hz

Max. Power: 100 VA

Communication Interface:

Communicate with the computer: USB, LAN, WIFI; Communicate with the charger and load: CAN-BUS

Temperature Performance: Operating temperature: -25°C~55°CStorage temperature: -30°C~70°C

Humidity Performance: Operating humidity: < 80% @ 30°C, < 70% @ 40°C, < 40% @ 50°C, Storage humidity: <80% R•H, non-condensing

Altitude: < 3000 m

Weight: About 21 kg

Dimensions: 540 mm(W) × 410 mm(D) × 270 mm(H)
