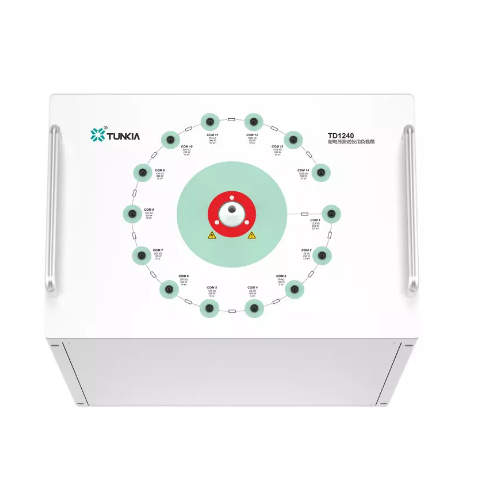

Tunkia TD1240 Verification Load Bank for Withstanding Voltage Testers

- Rated Voltage: 2.5 kV:

Rated Current: 100~200 mA

Rated Power: 250~500 VA

Max Power: 300~600 VA

Load Resistance: 12.5~25 kΩ

- Rated Voltage: 5 kV:

Rated Current: 20~100 mA

Rated Power: 100~500 VA

Max Power: 120~600 VA

Load Resistance: 50~250 kΩ

- Rated Voltage: 10 kV:

Rated Current: 10~50 mA

Rated Power: 100~500 VA

Max Power: 120~600 VA

Load Resistance: 200~1000 kΩ

- Rated Voltage: 15 kV:

Rated Current: 7~30 mA

Rated Power: 100~450 VA

Max Power: 120~540 VA

Load Resistance: 450~2250 kΩ

- General Specifications:

Power Supply: AC ( 220 ± 22 ) V，( 50 ± 2 ) Hz

Temperature Performance

Working temperature：0℃~45℃;

Storage temperature：-20℃~70℃

Humidity Performance

Working humidity：< 80% @ 30℃，< 70% @ 40℃，< 40% @ 50℃

Storage humidity：(20%~80%) R•H，non-condensing
