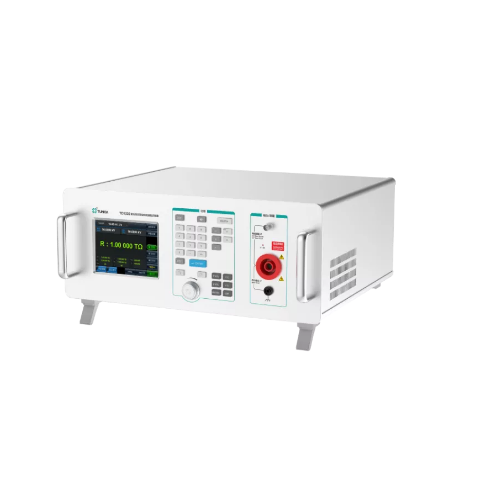

Tunkia TD1220 Verification Device for DC High Voltage & High Value Resistor (2 TΩ)

DC high voltage output：0～10 kV

DC small current output：0～50 mA

DC resistance measurement：100 Ω～2 TΩ(10 TΩ option)

Accuracy class：0.03

Constant current source (CC) and constant voltage source (CV) modes

CV mode: suitable for high resistance measurements

CC mode: suitable for low resistance measurements

Excellent electrical isolation and protection

LCD touch screen.

Setting output values by keys.

Test software (option)

For detailed specifications, please refer to the Datasheet enclosed herewith
