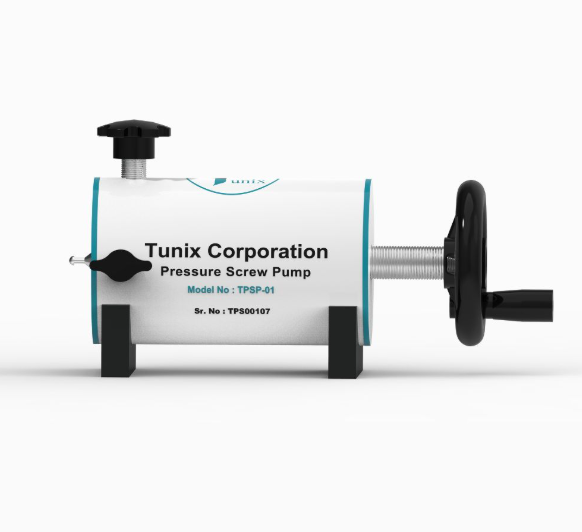

Tunix TPSP -01 Low Pressure Screw Pump (2500 mmwc, -1500 mmwc)

Compact, light weight, hand operated

Combined Pressure/ Vaccume mode

Range of Pressure upto 2500 mmwc & vaccum upto -1500 mmwc

Fine adjustment ± 0.1 mmwc

Pressure type : Pneumatic

Fine tuning option available

Thermally Insulated

Pressure release valve available

Leak rate of Instrument per minutes :

At Low range (0 to 500 mmwc) :- 0.25 mmwc

At mid range (500 to 1500 mmwc) :- 1 mmwc

At high range (1500 to 2500 mmwc):- 2.5 mmwc

Pump Dimension : Diameter 76 mm; Depth 142.00 mm

Weight : 815 g.

Standard Accessories :

Tubes with T connector 1 mtr long each, Soft carry bag
