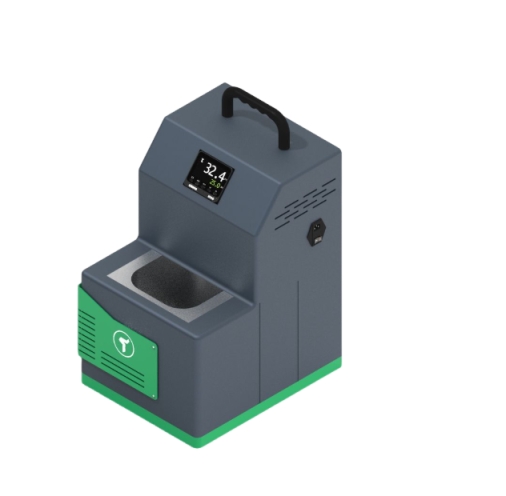

Tunix EO -250 B 1 Oil bath temperature Calibrator (resolution 0.01°C, Ambient temperature ~ 250 °C)

Temperature Range: Ambient temperature to 250 °C

Display Resolution: 0.1 °C.

Control Accuracy: Better than ±0.1 °C

Thermal in-stability:

± 0.05 °C @100 (after stabilization time of 15 minutes).

± 0.06 °C @250 °C (after stabilization time of 15 minutes).

Thermal Non-uniformity (Radial):

± 0.06 °C (after stabilization time of 15 minutes)@100 °C.

Stabilization Time/settling time: 15 minutes after set point is achieved.

Time to reach to 250 °C from ambient temperature: 45 minutes.

Power supply: 230 VAC @50-60 Hz.

Current: 6A.

Power Consumption: single phase ,1000 Watt maximum.

Oil vessel capacity: 4 Liter 50 Cst.(Silicon Oil).

Sound: Less than 30 dB

Enclosure Metal (MS) Powder Coated.

Weight: 14 Kg without oil.

Standard Accessories: Operating manual With Warranty certificate and general factory Calibration Certificate; Power Chord; Silicon Oil 50 CST.4 liters (optional if ordered.);  ISO 17025 Accredited Calibration Certificate ( NA If not ordered separately).

Note:

Stability is calculated as the best data for the period of two minutes after stabilization, the reported value is Sigma (σ), 120 samples taken for the calculation.

Temperatures above 120 °C causes fumes which gradually increases with respect to temperature so a exhaust blower is highly recommended to install. Fumes causes serious burning and irritation to eyes.
