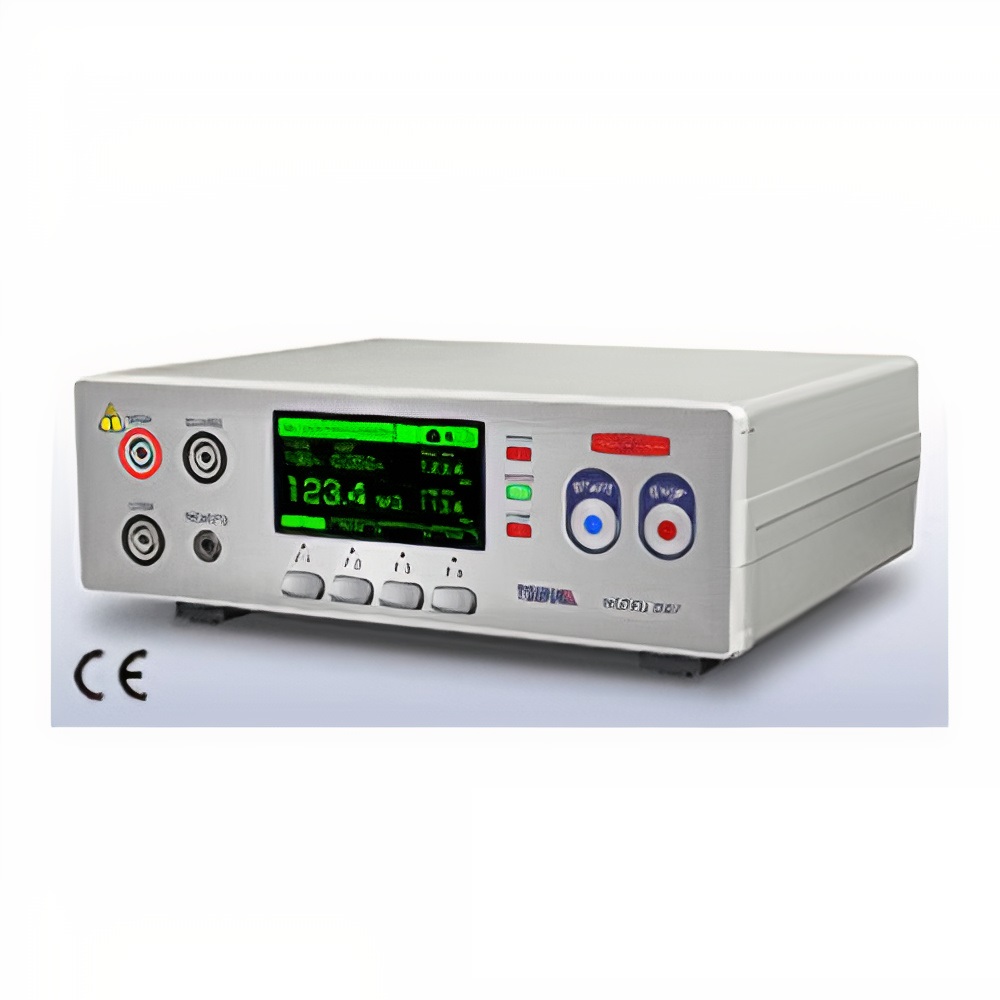

TSURUGA 3587-X Digital M-Ohm Tester (DC25~1000V; 1V; RS-232C)

Measuring Range

- Test voltage: DC 25V~DC 99V; DC 100V~DC 499V; DC 500V~DC1000V

- Resistance range: 2~200 MΩ; 2~2000 MΩ; 20~200 MΩ

Basic Specifications

Output voltage: DC 25~1050V (Resolution: 1V),

Open voltage: ±(1% + 5V) of output voltage

Open circuit voltage: Less than 130% of rated voltage

Rated current: Less than 1mA

Display: Measured value: 0~9990

2.7 inch organic EL display (OLED), color: green

Sampling cycle

- FAST: 50 times/sec. when the frequency setting is 50 Hz

60 times/sec. when the frequency setting is 60 Hz

- SLOW: 10 times/sec.

Power supply: AC 100~240V (50/60 Hz)

Power consumption: 28VA MAX.

Operating environment: 0~50°C, less than 90% RH (no condensation)

Storage environment: -20~70°C, less than 70% RH (no condensation)

Size: 205(W)×64(H)×169(D)mm (not included protuberance)

Included accessories:

- Power cord (1)

- Fuse (1)

- Operating manual (1)

Optional accessories:

- LOW probe 5813-21

- HIGH probe 5813-22

- HIGH probe with switch +LOW probe 5813-23

- Power supply cord for AC 200V 5880-23-030

- Panel mounting bracket 5811-31
