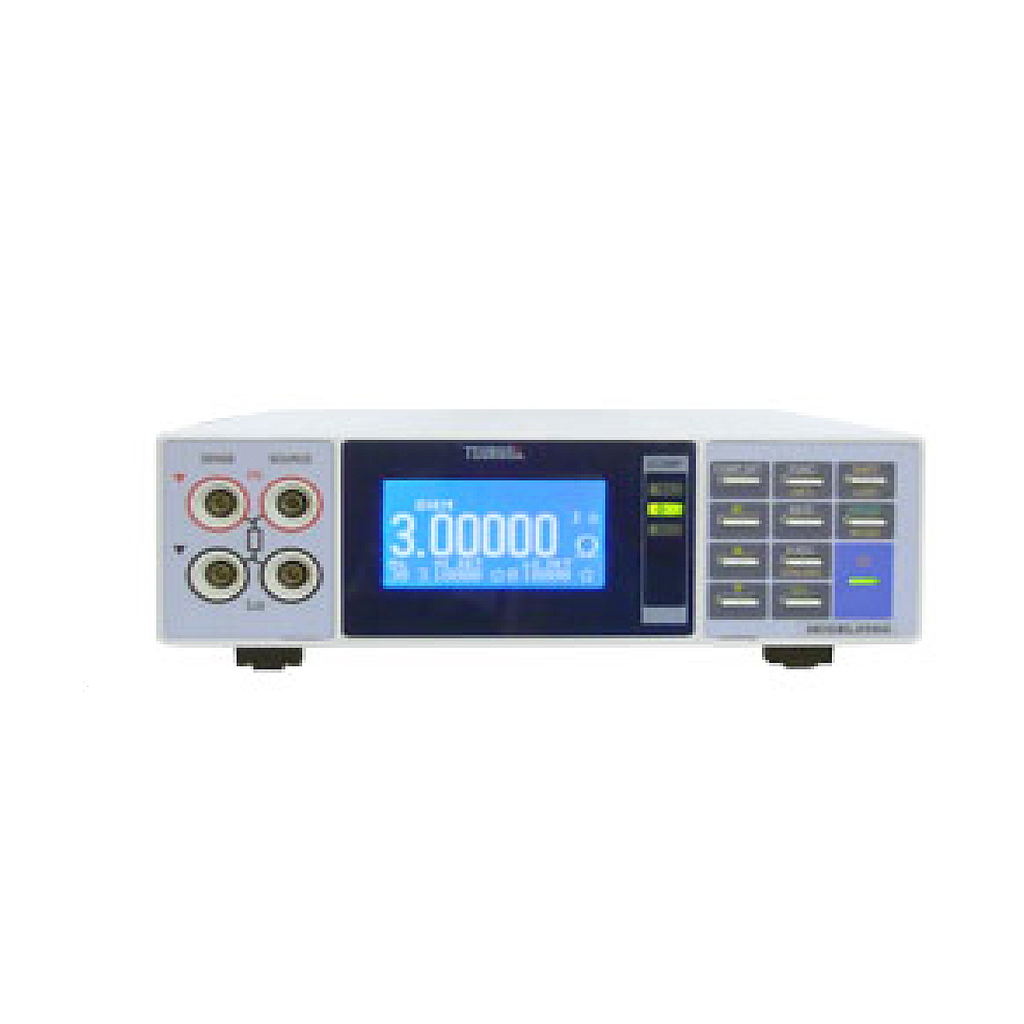

TSURUGA 356G DC Ohm Meter (1A,300Ω)

Model & Output
356G-O1-O2
-O1 X Without Option
03 BCD output, TTL level
04 BCD output, Open collector
06 RS-485
-O2 X Without Option
03 Analog output

Measurement ranges 30m, 300m-ohm, 3, 30, 300ohm, 5ranges
Accuracy ±(0.1% of rdg. + 30digit) / ±(0.08% of rdg. + 25digit) at SLOW & MEDIUM sampling mode
±(0.2% of rdg. + 10digit) at FAST sampling mode
Measurement current From DC 1A to 10 mA
Max. Applied voltage 50V DC for all ranges
Sampling time 80/sec (FAST mode), 20/sec (MEDIUM mode), 5/sec (SLOW mode)
Response speed 30ms (FAST mode), 100ms (MEDIUM mode), 500ms (SLOW mode)
Measurement method Four-terminal measurement
Measuring Temperature From -19.9 degree C to 199.9 degree C
Power supply 90 to 250V AC, 50/60HZ
Weight Approx. 2.8 kg
Dimensions 205 (W) x 65 (H) x 300 (D) mm
Accessories Power fuse(1), Power cord(1), Input connector (1)
