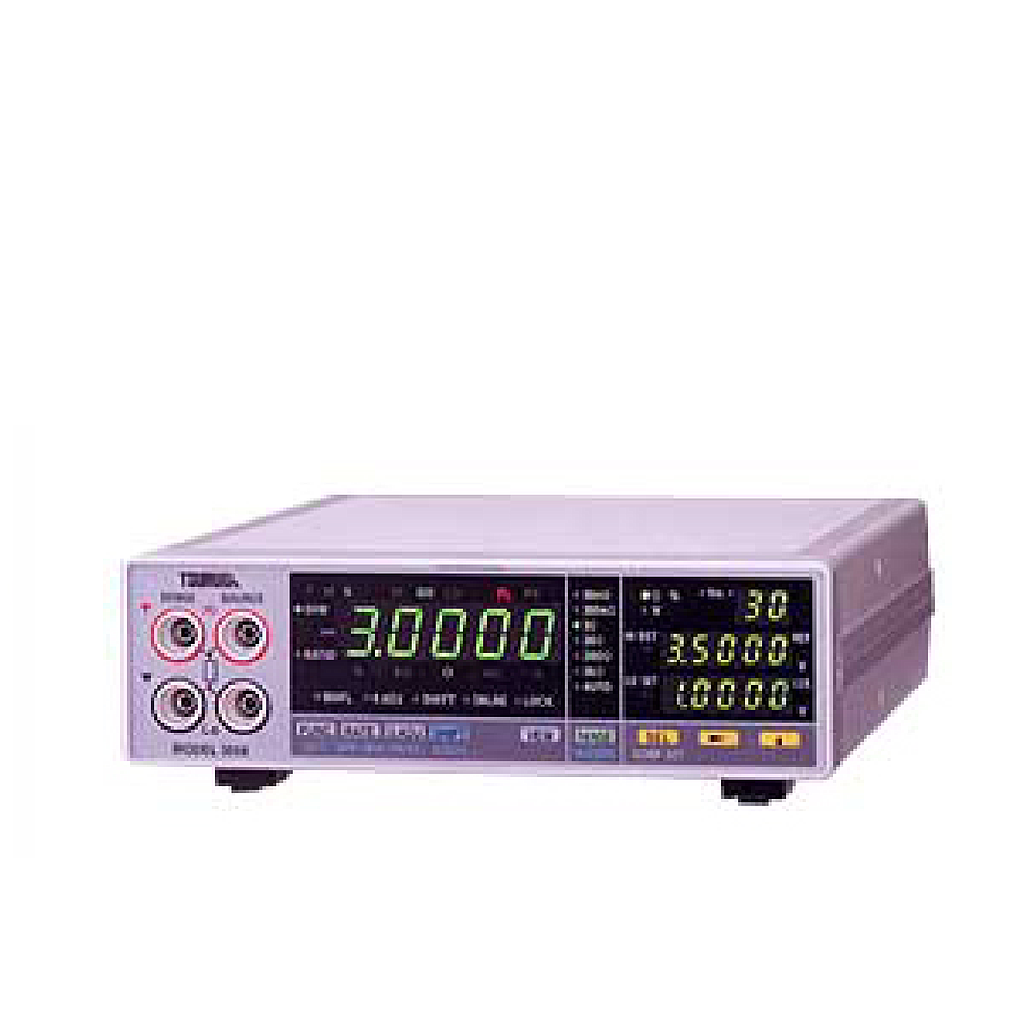

TSURUGA 356E AC m-ohm Tester (300mΩ)

Nil : Open collercter NPN

RY　: Relay　output

Resistance range 30 mOHM, 300mOHM, and 3OHM

Voltage range DC 5V and DC 50V

Accuracy (representative) Resistance : ±(1.0% of rdg. + 15digit)

Voltage : ±(0.05% of rdg. + 5digit)

Frequency AC 10kHz ±200Hz

Measuring Current 7.4mA (for 30 mOHM), 1mA(for 300mOHM), 100μA (for 30OHM)

Allowable applived voltage DC60V for all range

Sampling rate and Response speed

SLOW mode: 1.56 time/sec. 1.92s for 50Hz; 1.88 time/sec. 1.60s for 60Hz

MEDIUM mode: 6.25 time/sec. 800ms for 50Hz; 7.52 time/sec. 667ms for 60Hz

FAST mode: 50 time/sec. 100ms for 50Hz

60 time/sec. 84ms for 60Hz

Measurement method AC Four(4) terminal system

Power supply AC100 to 240V 50/60Hz

Weight Approx. 1 kg

Dimensions 206 (W) x 65 (H) x 169 (D) mm

Optional Accessories

Kelvin clip 5811-24B

Power Supply fuse, Power Supply code, Connector for input
