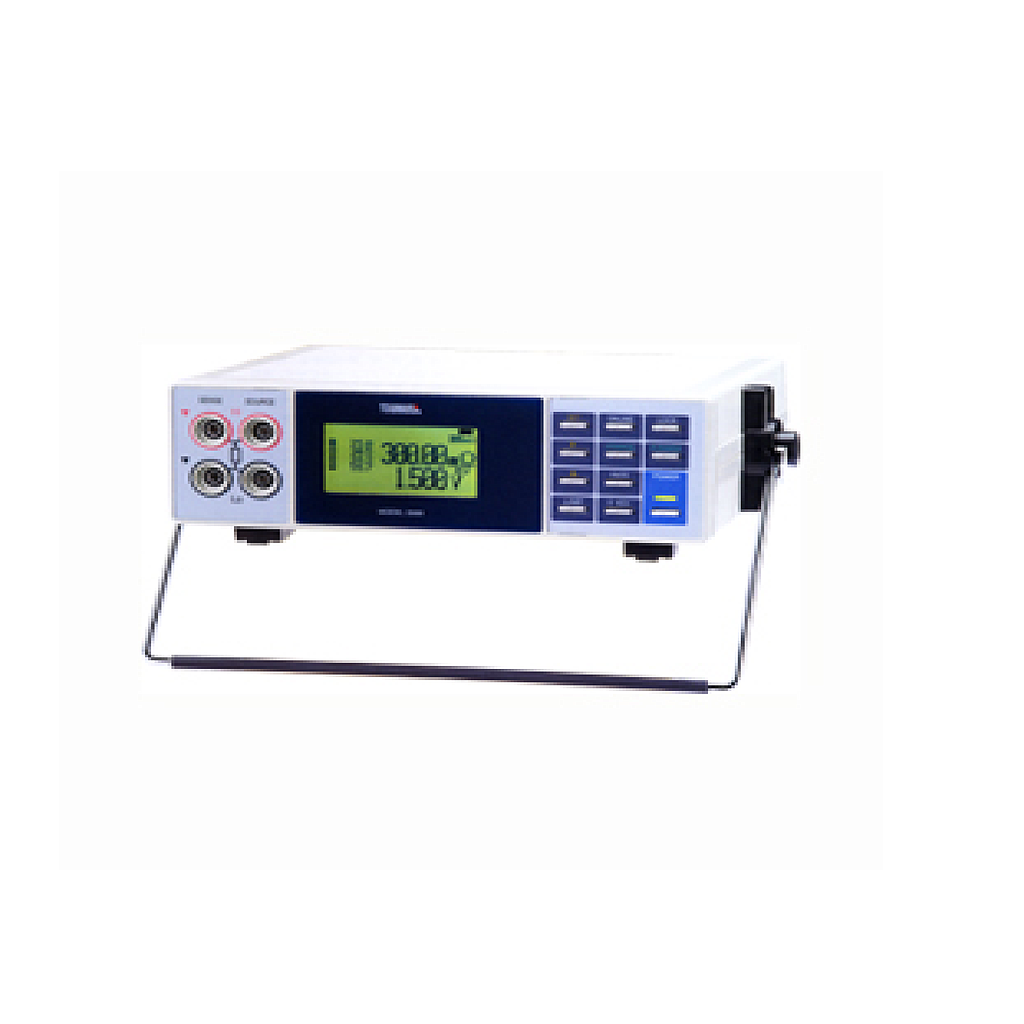

TSURUGA 3569 Portable AC m-Ohm Tester (300mΩ)

3569: Standard

3569-01: Temperature compensation function
Analog output & RS-232C (standard)
Measurement ranges 30m-ohm、300m-ohm、3ohm 3ranges
Accuracy Resistance measurement: ±(0.5% of rdg. + 8digit)
Voltage measurement: ±(0.05% of rdg. + 5digit)
Temperature measurement: ±(0.1% of rdg. + 0.5°) typ.
Measuring frequency AC 1kHz ± 20Hz
Measurement current 7.4mA(30m-ohm range), 1mA(300m-ohm), 100μA(3ohm)
Max. Applied voltage 200V DC for all ranges
Sampling time 2/sec. (SLOW mode) 10/sec. (FAST mode)
Response speed 1.6sec. (SLOW mode) 0.667sec. (FAST mode)
Measurement method 4-terminal method
Temperature measuring range K type thermocouple: from -100.0 to 1300.0 degree C
J type thermocouple: from -140.0 to 1200.0 degree C
T type thermocouple: from -200.0 to 400.0 degree C
Power supply LR6 (AA) Alkaline batteries × 6, AC adaptor (100/ 200V +/- 10%)
Weight Approx. 1 kg
Dimensions 206 (W) x 65 (H) x 169 (D) mm
Accessories Kelvin clip , AC adaptor, LR6(AA)Alkaline batteries × 6
