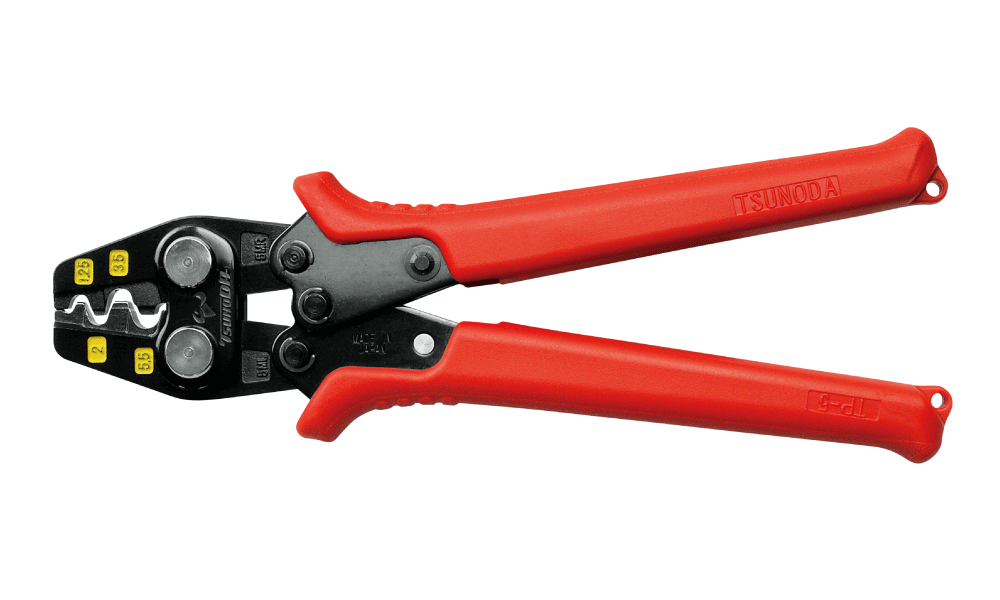

Tsunoda TP-5M Crimping Tool For Non-Insulated Terminals (1.25~5.5㎟)
ManufacturerTsunoda(View more products from this manufacturer)
ModelTP-5M
OriginJapan
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Overall length: 177mm
Head width: 37mm
Head thickness: 6mm
Handle width: 65mm
Weight: 220g
EAN-code (4952269): 113686
Terminal size:
JIS: 1.25/2/3.5/5.5㎟
IEC/DIN: 1.5/2.5/4/6㎟
AWG: 16/14/12/10
Crimped Mark: 1/2/3/5
Material: Alloy steel
Head hardness [HRC]: 42～48
Handle part hardness [HRC]: 43～47
Handle cover: Elastomeric molded resin grips
