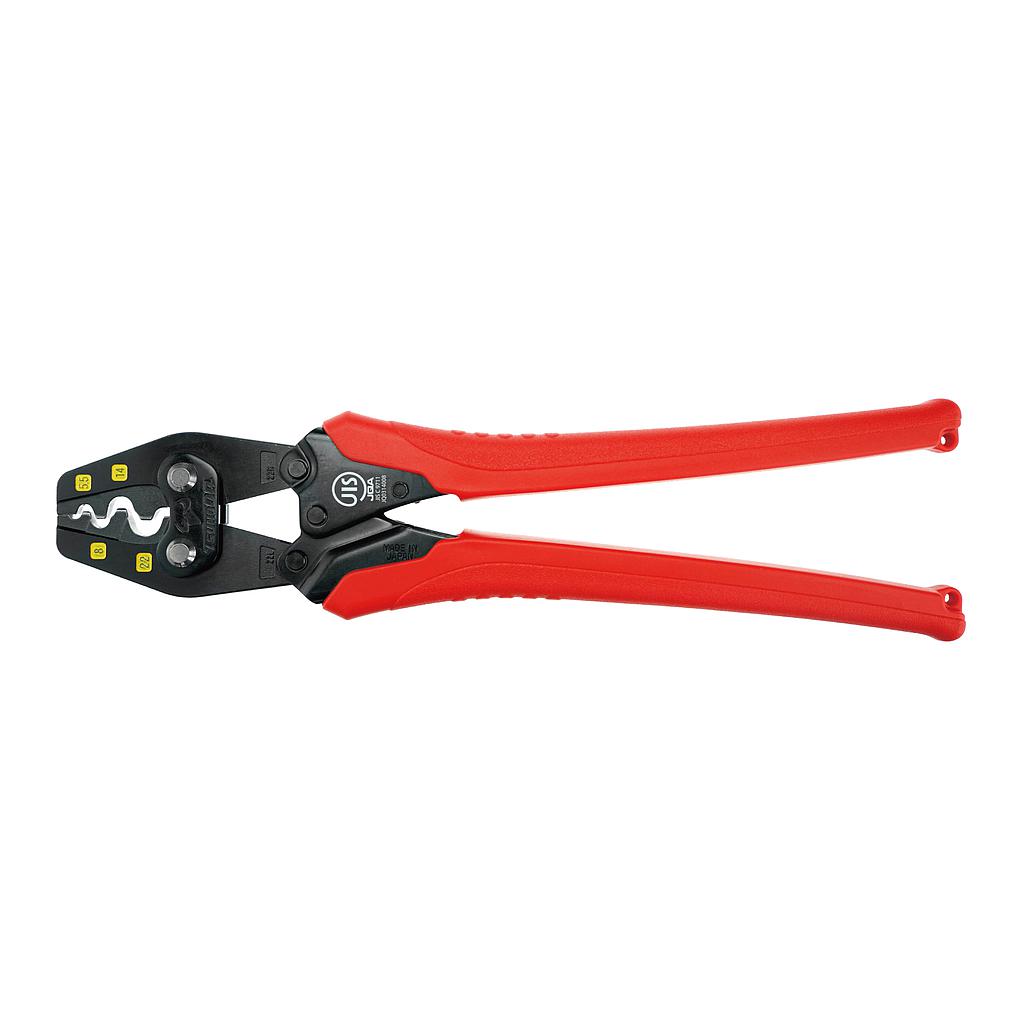

Tsunoda TP-22 Crimping Tool For Non-Insulated Terminals (5.5~22㎟)
ManufacturerTsunoda(View more products from this manufacturer)
ModelTP-22
OriginJapan
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Overall length: 345mm
Head width: 63mm
Head thickness: 7mm
Handle width: 86mm
Weight: 760g
EAN-code (4952269): 114263
Terminal size:
JIS: 5.5/8/14/22㎟
IEC/DIN: 6/10/16/24㎟
AWG: 10/8/6/4
Crimped Mark: 5/8/14/22
Material: Alloy steel
Head hardness [HRC]: 42～46
Handle part hardness [HRC]: 46～49
Handle cover: Elastomeric molded resin grips
