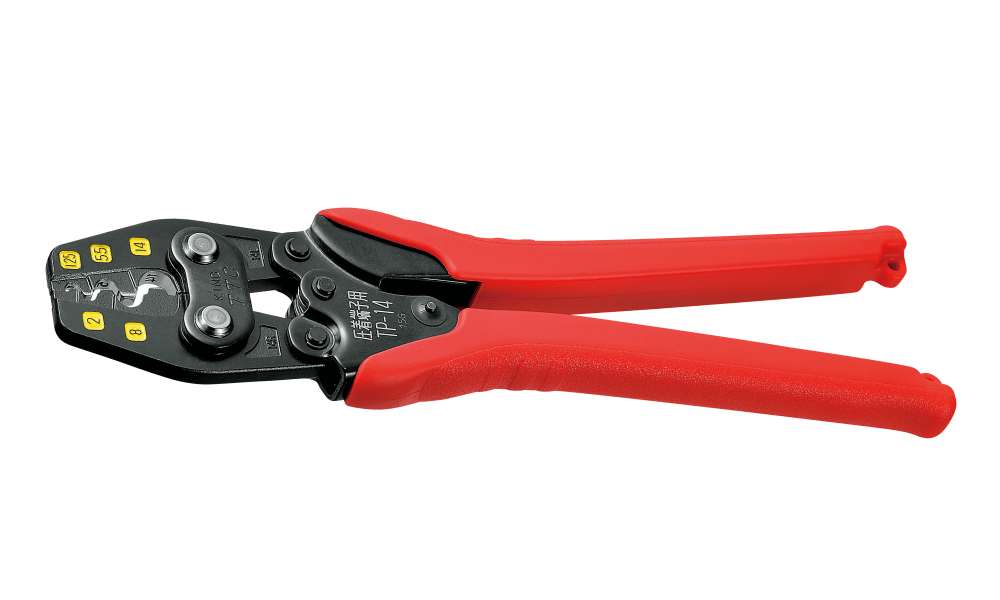

Tsunoda TP-14 Crimping Tool For Non-Insulated Terminals (1.25~14㎟)
ManufacturerTsunoda(View more products from this manufacturer)
ModelTP-14
OriginJapan
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Overall length: 257mm
Head width: 52mm
Head thickness: 6mm
Handle width: 74mm
Weight: 435g
EAN-code (4952269): 113365
Terminal size:
JIS: 1.25/2/5.5/8/14㎟
IEC/DIN: 1.5/2.5/6/10/16㎟
AWG: 16/14/10/8/6
Crimped Mark: 1/2/5/8/14
Material: Alloy steel
Head hardness [HRC]: 42～48
Handle part hardness [HRC]: 43～47
Handle cover: Elastomeric molded resin grips
