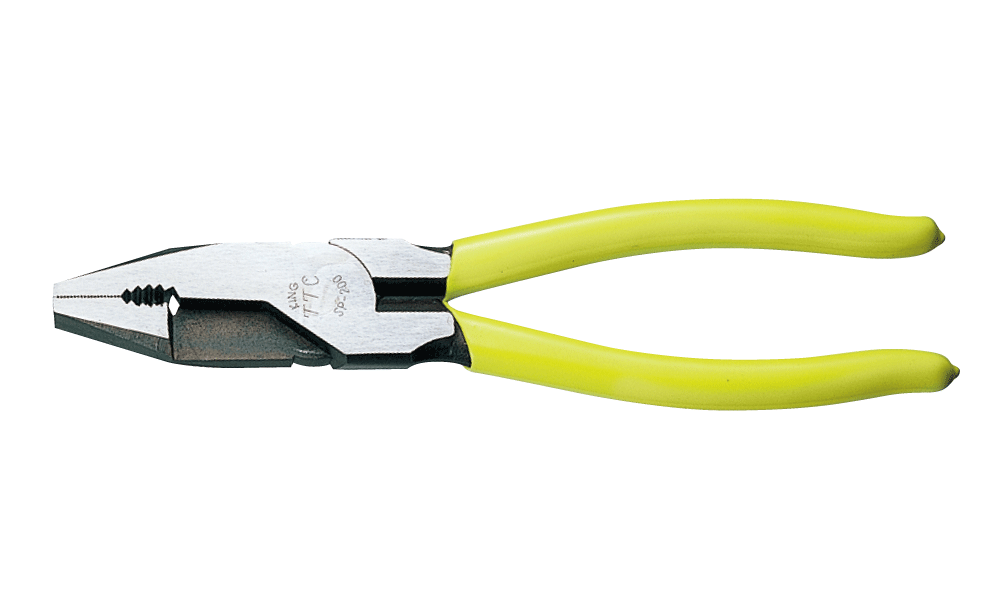

Tsunoda SP-200 Shearing Pliers (200mm)

Overall length: 209mm
Head width: 27mm
Head thickness: 10mm
Handle width: 52mm
Nose length: 50mm
Jaw side edge length: 22mm
Handle side edge length: 16mm
Weight: 285g
EAN-code (4952269): 106121
Cutting capacity (Jaw side edge)
VVF cable: 2.0×2cores
Iron sheet (thickness): 0.6φmm
Copper sheet (thickness): 1.0φmm
Cutting capacity (Handle side edge):
Soft iron: 2.0φmm
Copper: 2.0φmm
Material: Carbon steel for machinery（S58C）
Heat Treatment: Oxide-free heat treatment
Body hardness [HRC]: 44～52
Handle cover: PVC dipping
Surface treatment: Anti-rust oils
