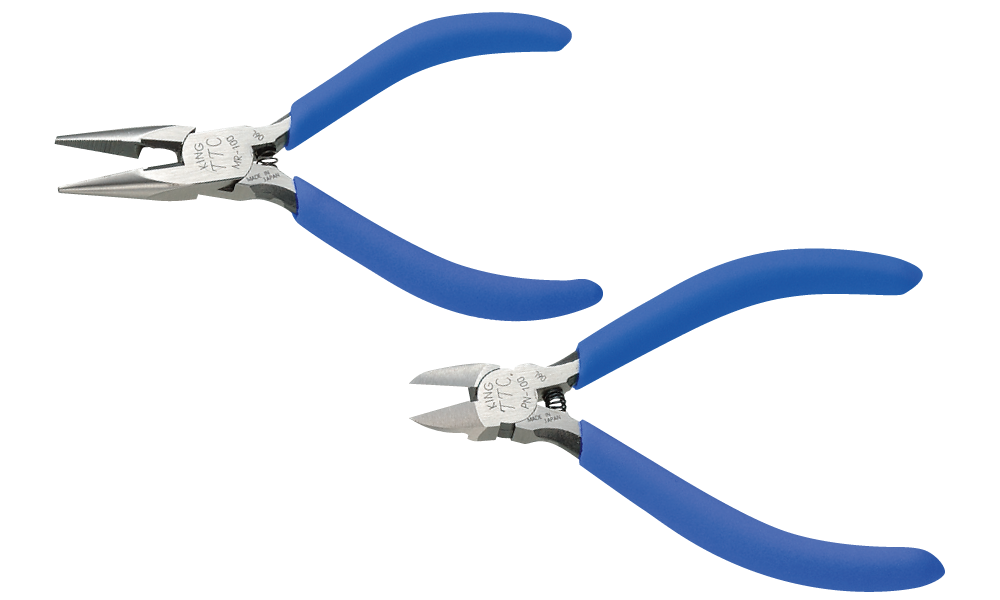

Tsunoda MRN-100 Long Nose Pliers and Plastic Cutter (100mm)

MR-100 Long Nose Pliers
Overall length: 102mm
Head width: 10mm
Head thickness: 7mm
Handle width: 44mm
Nose length: 23mm
Weight: 40g
EAN-code (4952269): 430141
Cutting capacity (φmm):
Soft iron: 1.2
Copper: 1.6
Stranded copper wire: 2.0㎟
Material: Carbon steel for machinery
Heat Treatment: Oxide-free heat treatment, Induction hardening on edge
Body hardness [HRC]: 42～50
Edge hardness [HRC]: 54～62
Spring: Coil spring
Handle cover: PVC dipping
Surface treatment: Anti-rust oils

PN-100 Plastic cutter

Overall length: 102mm
Head width: 11mm
Head thickness: 7mm
Handle width: 44mm
Nose length: 14mm
Weight: 50g
EAN-code (4952269): 430141
Cutting capacity (φmm):
Copper: 1.6
Stranded copper wire: 2.0㎟
Plastic: 4.0
Material: Carbon steel for machinery
Heat Treatment: Oxide-free heat treatment, Induction hardening on edge
Body hardness [HRC]: 42～50
Edge hardness [HRC]: 54～62
Spring: Coil spring
Handle cover: PVC dipping
Surface treatment: Anti-rust oils

Datasheet
