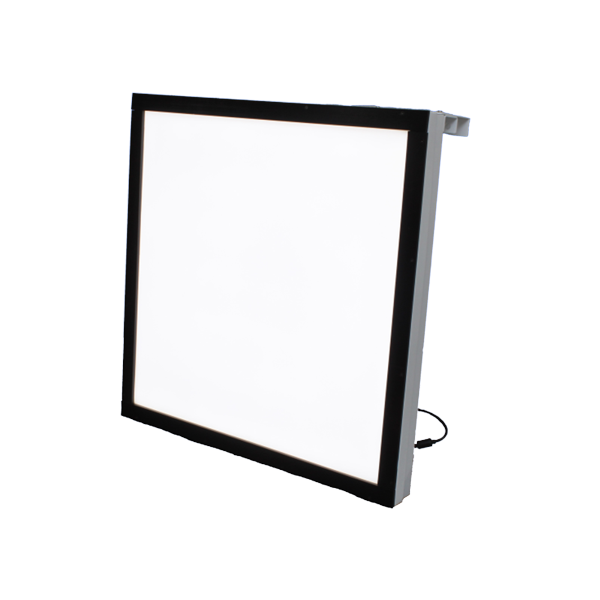

Tsubosaka VLB-500LED3-N Large Luminance Surface LED Light Panel (2000-14000lx, 500x500mm)

Luminance [cd/㎡]: 500-3200

Luminance surface (WxH) [mm]: 546x546

Active luminance surface (WxH) [mm]: 500x500

Luminance unevenness [± %]: 5

Correlated color temperature [K]: 5500+/-500

Light source: LED

Lighting method: DC

Illuminance [lx]: 2000-14000

Power-supply voltage: AC100-240[V] 50/60[Hz]

Dimensions (WxHxD) [mm]: 604x604x55

Weight [kg]: 5

Datasheet

Large luminance surface 500x500mm, Thin body 55mm

Taking pictures of multiple charts at the same time

Thin body makes it more flexible to place the device

Special diffuser and mechanism

Suitable for the wide angle camera evaluation

Non-flicker DC lighting

Reflect preventions of luminance surface reduce background reflections
