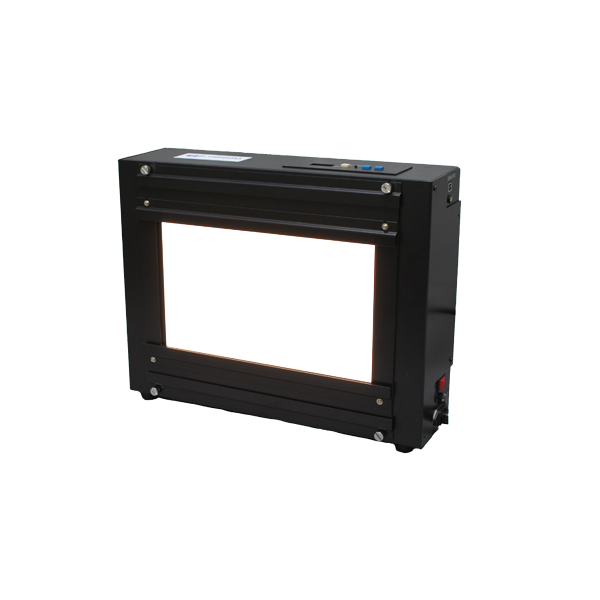

Tsubosaka VLB-3020FBW3-CRI Ultra High Color Rendering LED Light Box (20-2,300 cd/㎡)

Luminance range [LV]: Luminance register points; 10 points

7.0-14.0

Luminance range [cd/㎡]: Luminance register points; 10 points

20-2,300

Luminance surface (WxH) [mm]: 300x200

Luminance unevenness [± %]: 2.5

Correlated color temperature [K]: Select two color temperatures from the below

3200+/-150

5500+/-500

6500+/-500

Light source: LED

Lighting method: PWM 100[kHz]

Communication I / F: USB 2.0

Power-supply voltage: AC100-240V 50/60 Hz

Power consumption [VA]: 40

Operating environment

Temperature: 15-30 [℃]

Humidity: less than 80% without dew condensation

Dimensions (WxHxD) [mm]: 435x330x120

Weight [kg]: 5
