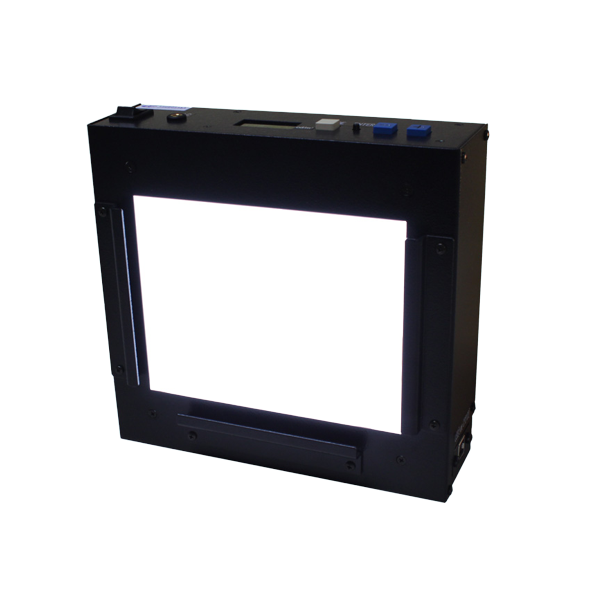

Tsubosaka VLB-1411FBC-CRI High Color Rendering LED Light Source Box (300-1700 cd/㎡)

Luminance range [cd/㎡]: Luminance register points; 10 point

300-1700

Luminance surface (WxH) [mm]: 140x110

Luminance unevenness [± %]: 2.5

Correlated color temperature [K]: Select 1 from the below

3200+/-150

5500+/-500

6500+/-500

Light source: LED

Lighting method: DC

Communication I / F: USB 2.0

Power-supply voltage: AC100-240V 50/60Hz

Operating environment

Temperature: 20-30 [℃] less than +/-2 degrees Celsius recommendation

Humidity: less than 80 [%] without dew condensation

Dimensions (WxHxD) [mm]: 186x193x68

Weight [g]: 600

Accessories:

Designated PC control software

Chart holder
