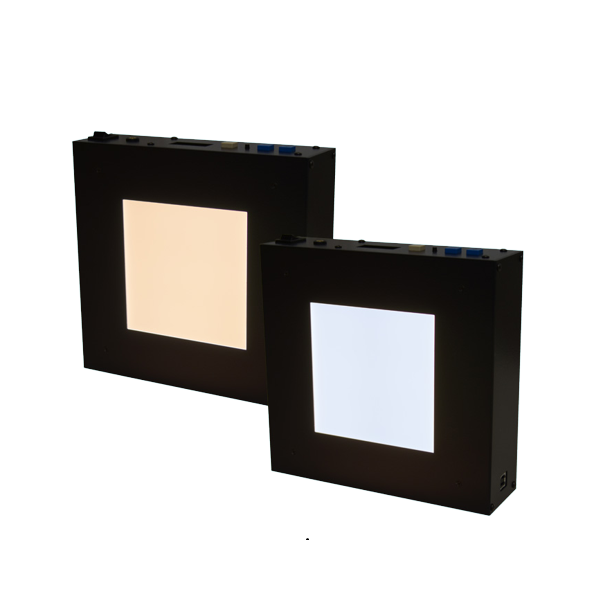

Tsubosaka VLB-10FBW2-CRI Ultra High Color Rendering LED Light Box (20-2500 cd/㎡)

Luminance range [LV]: 7.0-14.0 (set 10 luminance points)

Luminance range [cd/㎡]: 20-2500 (set 10 luminance points)

Luminance surface (WxH) [mm]: 100x100

Luminance unevenness [± %]: 2.5

Correlated color temperature [K]: Select two color temperatures from the below

3200+/-150

5500+/-500

6500+/-500

Light source: LED

Lighting method: PWM 100[kHz]

Communication I / F: USB 2.0 compliant

Power-supply voltage: AC100-240V 50/60Hz

Operating environment: Temperature: 15-30[℃]

Humidity: less than 80[%] without dew condensation

Dimensions (WxHxD) [mm]: 187x194x56

Weight [g]: 550
