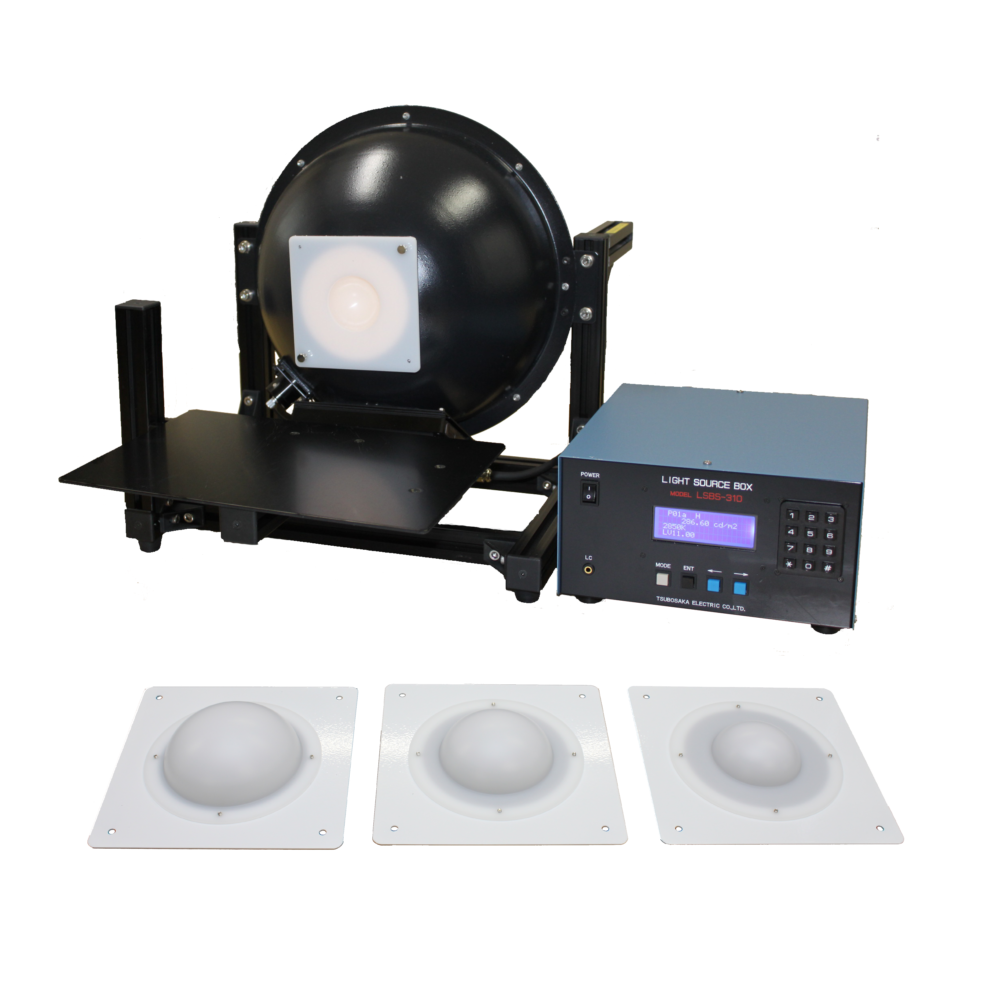

Tsubosaka LSBS-310WCRI High Uniformity Integrating Sphere Light Source (2.24-30,000 cd/㎡)

Luminance [LV]: 4-17.71

Luminance [cd/㎡]: 2.24-30,000

Luminance unevenness [± %]: 3

Correlated color temperature [K]: Maximum 6 points from 2600-6500

Light source: LED

Lighting method: DC

Setting range: 300

Setting range: 100

Communication I / F: USB2.0

Power-supply voltage: AC100-240V 50/60Hz

Power consumption [VA]: 100

Dimensions (WxHxD) [mm]

Light source unit: 390x400x563

Operation unit: 230x134x250

Weight [kg]

Light source unit: 9

Operation unit: 3

Datasheet

Φ300mm Integrating Sphere

High luminance 30,000cd/m^2

Luminance is always stable with luminance feedback function

Multiple color temperatures can be set

Output high luminance in spite of distributing high color temperature

Using spherical diffusing plate (separate sold) makes various wide angle camera evaluations

Light source can change to Infrared (850nm, 940nm, 1050nm, 1300nm, 1550nm etc.)
