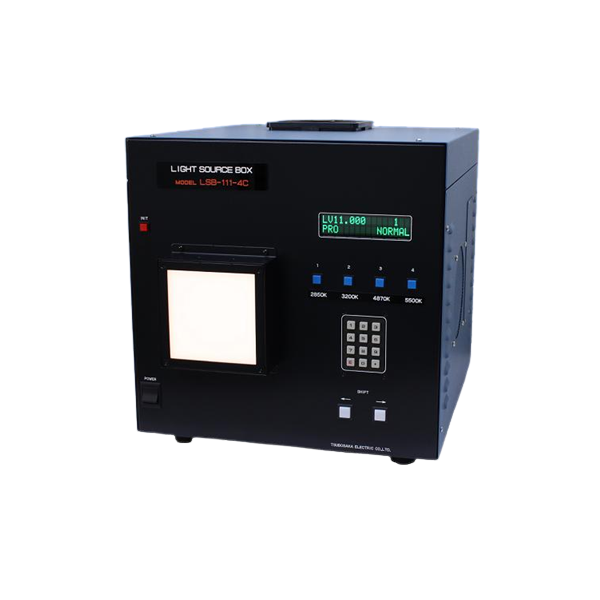

Tsubosaka LSB-111-4C2 4 Color Temperatures Light Box (2.5-2250 cd/㎡)

Luminance [LV]

2850K: 4.0-17.0

3200K: 4.0-16.0

4870K: 4.0-14.5

5500K: 4.0-14.0

Luminance [cd/㎡]

2850K: 2.5-18300

3200K: 2.5-9150

4870K: 2.5-3200

5500K: 2.5-2250

Luminance surface (WxH) [mm]: 100x100

Active luminance surface (WxH) [mm]: φ100

Light source: Halogen lamp 24V-270W (Infrared cut)

Communication I / F: RS-232C

Power-supply voltage: AC100-240V, 50/60Hz

Power consumption [VA]: 500

Dimensions (WxHxD) [mm]: 400x390x440

Weight [kg]: 21

Datasheet

Can switch 4 color temperatures with the switch operation and the external communication

High uniform luminance with 100×100 luminance surface

Output a stable luminance with operating luminance feedback function

Fine tuning of luminance with the keypad or the external communication control
