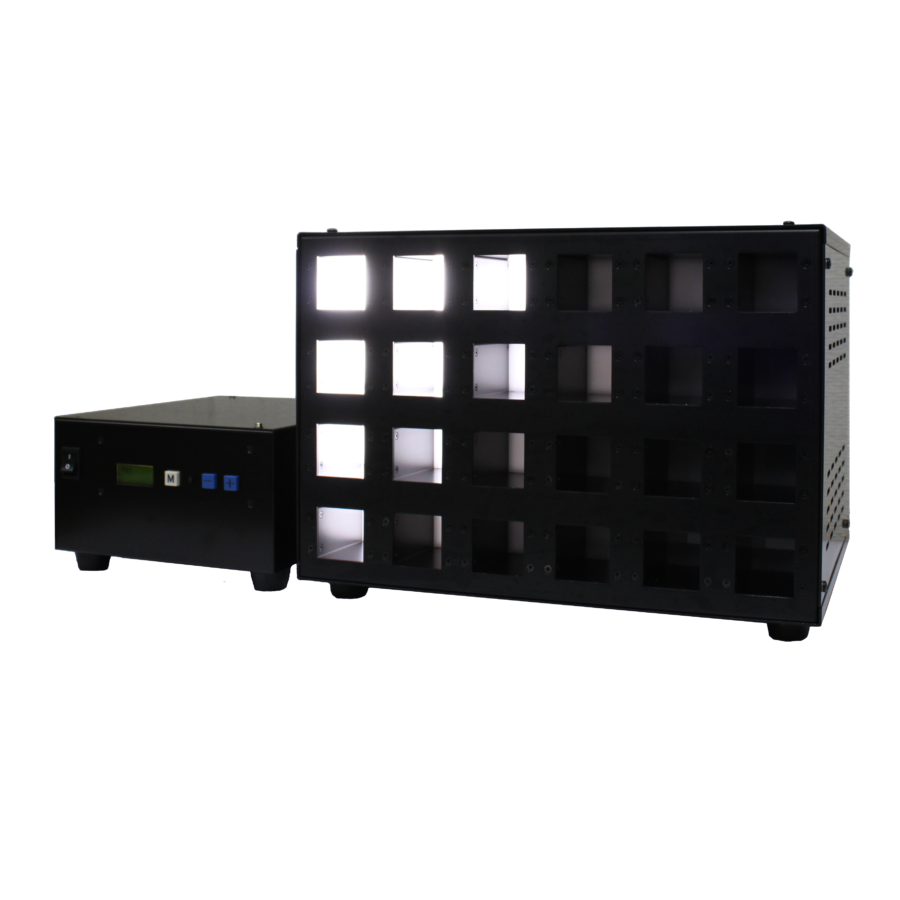

Tsubosaka LSB-0303HDR-2415 Dynamic Range Lens Evaluation light Source (Max 145,000cd/㎡)

Luminance [LV]: -5 - 20

Luminance [cd/㎡]: 0.0044 - 145,000. It is different from each luminance surface

Luminance range [LV]: Each luminance surface 2.5[EV]

Luminance surface (WxH) [mm]: 29 x 29, 4 columns 6 rows

Active luminance surface (WxH) [mm]: 20 x 20

Luminance unevenness [± %]: 2.5

Correlated color temperature [K]: 5000 +/- 500

Light source: LED

Lighting method: DC lighting

Communication I / F: Connecter: USB2.0 Type-B

Power-supply voltage: AC100 - 240[V], 50/60[Hz]

Power consumption [VA]: 20

Dimensions (WxHxD) [mm]

Light source unit: 310 x 225 x 200 [mm]

Control unit: 170 x 200 x 105 [mm]

Weight [kg]

Light source unit: 3kg

Control unit: 2kg

Accessories: PC control software
