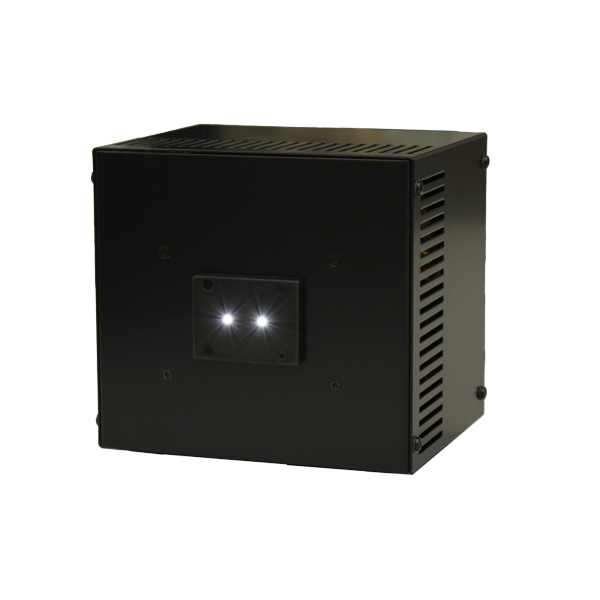

Tsubosaka JIG-HLS-106 Reproduce Headlight Light Source (max > 500,000cd/㎡)

Luminance [cd/㎡]

Common-use: 200,000-300,000

Maximum: more than 500,000

Correlated color temperature [K]: 6500+/-500 *Option: 2850+/-300, 5100+/-500

Light source: LED

Lighting method: DC

function: Power adjust analog volume (Both of two lights, only left /right )

Power-supply voltage: AC adapter, Ac100-240V, 50/60Hz

Power consumption [VA]: 65

Dimensions (WxHxD) [mm]: 121x116x99 (except protrusions)

Weight [g]: Light source: 550

AC adapter: 500

Extension: Change of suppose distance

Datasheet

Confirm to ISO 16505

Jig of mock headlight with using high color rendering white LED

Supposition of exist of headlight (diameter 0.09m) ahead from 250m by 1.3m

Set 2.5m distance, diminution rate 2.5m/250m = 0.010 times

Maximum luminance more than 500,000 [cd/m^2]
