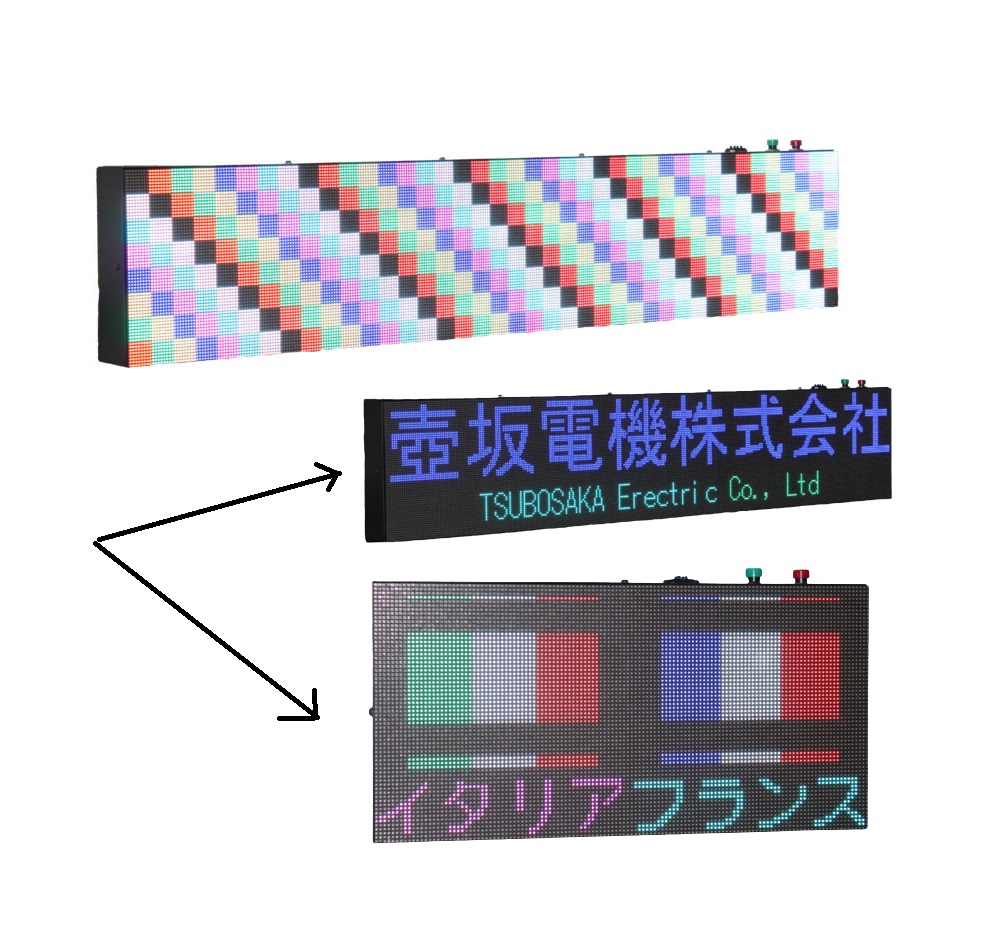

Tsubosaka DMLP320 Reproduce Flicker Lights Panel (DC 5V, 120W, 963.5x195.5x67mm)

Function

Display unit:

Invoke maximum 90 pages of display parameters

Automatic switch a display parameter by an inside timer

Designated PC software :

Setting of the display parameter

Setting of switching timing of the display parameter

Select from varieties of font: Gothic, Narrow gothic, Round gothic, Minchotai, Taiminchotai

Setting range

Characters (JIS fist grade, JIS second grade, extended character almost 7,400 characters)

Light up by each 1 dot / Free drawing to specify unlighted places

Refresh rate: Standard 8.3333[ms] = 120[Hz]

Changeable range: 3.3333-263.333[ms] 120-3.797 [Hz]

Display / Operation

LED display unit

External communication control (serial communication)

Communication I / F

RS-232C

RS-485

Power-supply voltage: Rated input power: DC 5[V] 120[W]

Power consumption [VA]: Less than 12[A]

Operating environment

Temperature: 0-40[℃]

Humidity: less than 80[%] without dew condensation

Dimensions (WxHxD) [mm]: 963.5x195.5x67

Weight [kg]: 3.2

Extension: DC 5V power supply unit

Datasheet

Illumination reproduces accurately light flickers for an evaluation of blind spots of a camera.

Change any patterns, words or figures within 7400 characters x 5 points font.

Change refresh rate to simulate multiple displays by an one device.

7 colors

Resolution: 320 x 64 = 20.480[dot]

Pixel pitch: 3.0[mm]
