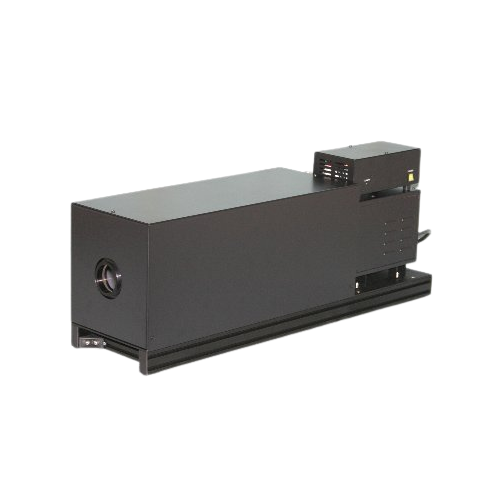

Tsubosaka AFC-500 Chart Collimator (300-900 cd/㎡)

Luminance [cd/㎡]: 300-900

Luminance surface (WxH) [mm]: 150x120

Correlated color temperature [K]: 6500+/-500

Light source: LED *Can change to Halogen by the option

Collimator optical system: Collimator lens φ50mm, f=500mm

Chart: 90x120mm

Power-supply voltage: AC100-240V, 50/60Hz

Power consumption [VA]: 10

Dimensions (WxHxD) [mm]: 200x260x750

Weight [kg]: 11

Datasheet

Extension

Focal position can change to finite position

Variable mechanism of focal position (Motorized chart part)

Change light source

All customs to fit chart size
