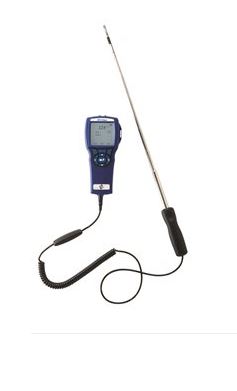

TSI 9565 Velocicalc Multi-Function Ventilation Meter

Multifunction handheld climate meter, supplied with meter 9565-P and model 964 probe

Velocity Measurement:

- Measuring range: 1.27 - 78.750 m / s

- Accuracy: ± 1.5% at 2,000 ft / min (10.16m / s)

- Resolution: 0.01m / s

Pipeline size: 2.5-1.270cm, 0.1cm adjusting step

Volumetric flow: the scale depends on pipe size, pressure, wind speed, and K factor

Static pressure range: ± 3735 Pa or ± 28.0mmHg

Exact pressure: ± 1% of reading or ± 1 Pa

Resolution: 0.1Pa, 0.01mmHg

Atmosphere Pressure: 517.15 - 930.87mmHg

Accurate pressure: ± 2% of reading

Operating Temperature: 5 - 45 ° C,

Storage capacity: 26,500 data + 100 test ID

Storage time: 1 second to 1 hour

Constant time: selectable

Dimensions: 97 x 211 x 53mm. Weight 0.36kg

Power supply: 4 AA batteries, AC adapter (sold separately)

Offers include: main unit, valy plastic, 4 alkaline batteries, USB cable and software, manual, certification of the company.
