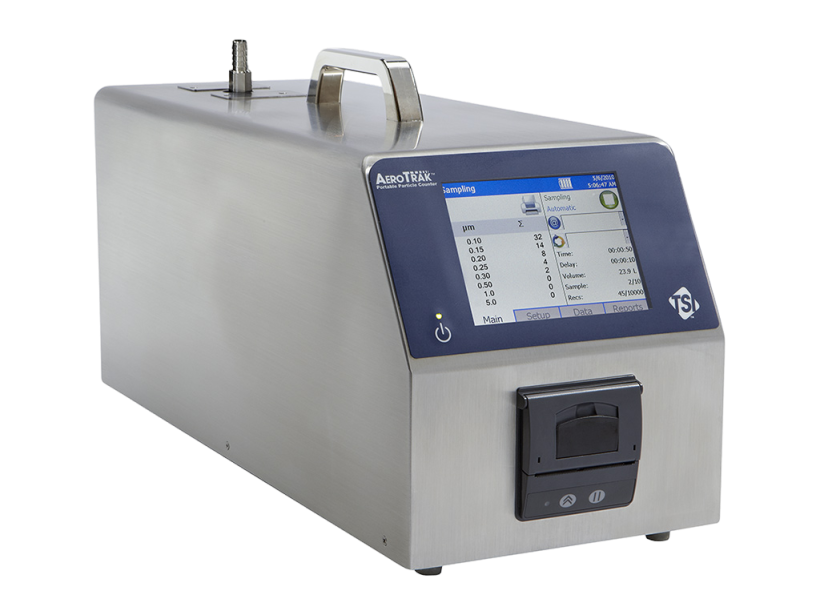

TSI 9110 Portable Particle Counter (0.100 – 10.0 µm)

Size Range: 0.100 – 10.0 µm

Particle Channels: 9110-01: 0.10; 0.15; 0.2; 0.25; 0.3; 0.5; 1.0; 5.0 µm

Size Resolution: <15% @ 0.2 µm (ISO 21501-4)

Counting Efficiency: 50% @ 0.100 µm; 100% >0.15 µm

Concentration Limit: 100,000 particles/ft³ @ 10% coincidence loss

Light Source: HeNe laser

Flow Rate: 1 CFM (28.3 L/min) ±5%

Sampling Modes: Manual / automatic; cumulative / differential

Sampling Time: 1 second – 99 hours

Cycles: 1 – 9999 or continuous

Exhaust: Internal HEPA filter

Communication: Ethernet (Modbus TCP), USB

Display: 5.7-inch touchscreen

Software: TrakPro™ Lite Secure, FMS

Data Storage: 10,000 records; 250 zones; 999 locations

Alarms: Audible >85 dB; dry contact; programmable limits

Security: 2-level password; configurable IP

Power: 110–240 VAC

Battery: Li-Ion (up to 4), ~4 hours operation

Dimensions: 23.6 x 20.6 x 52.2 cm

Weight: 11.14 kg (without battery) / 12.7 kg (with battery)

Operating Conditions: 10–35°C; 20–95% RH

Storage Conditions: 0–50°C; ≤98% RH
